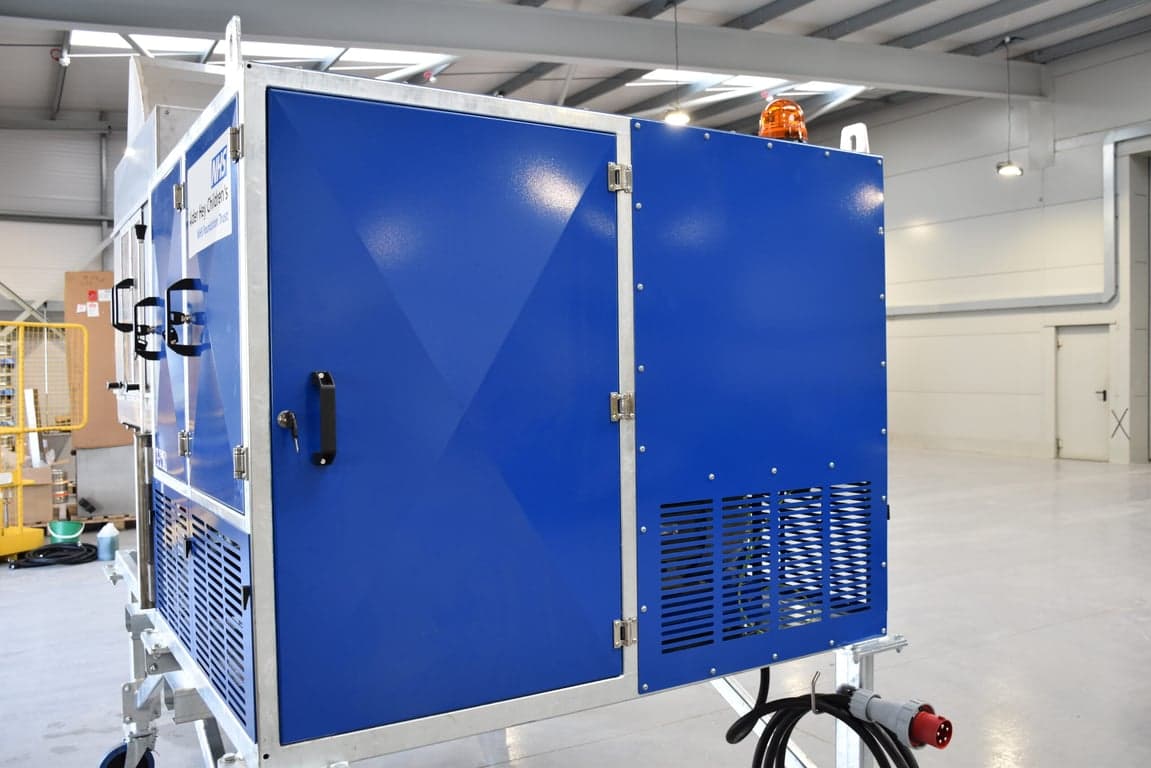

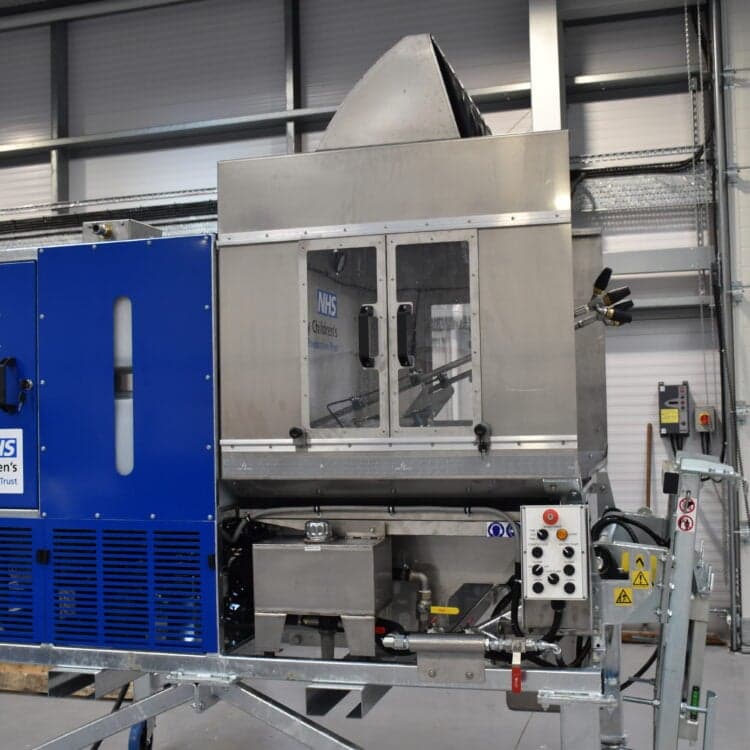

Designed and Manufactured in house to CE machinery directives and is supplied with a declaration to confirm the directives are met and adhered too.

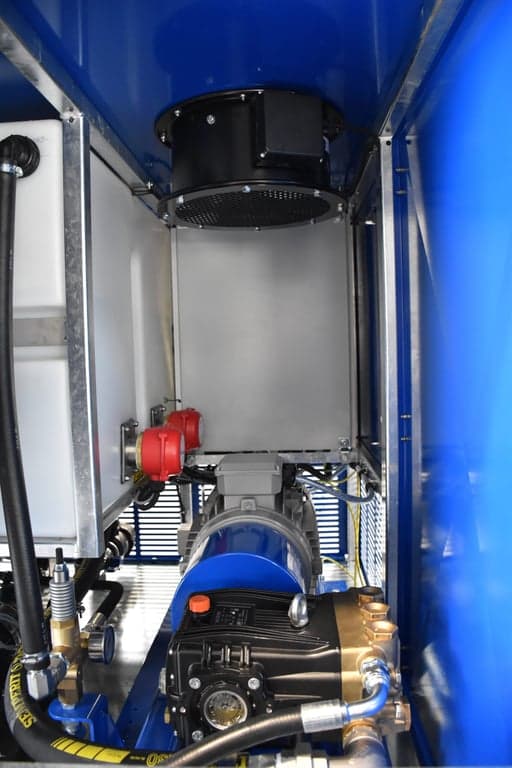

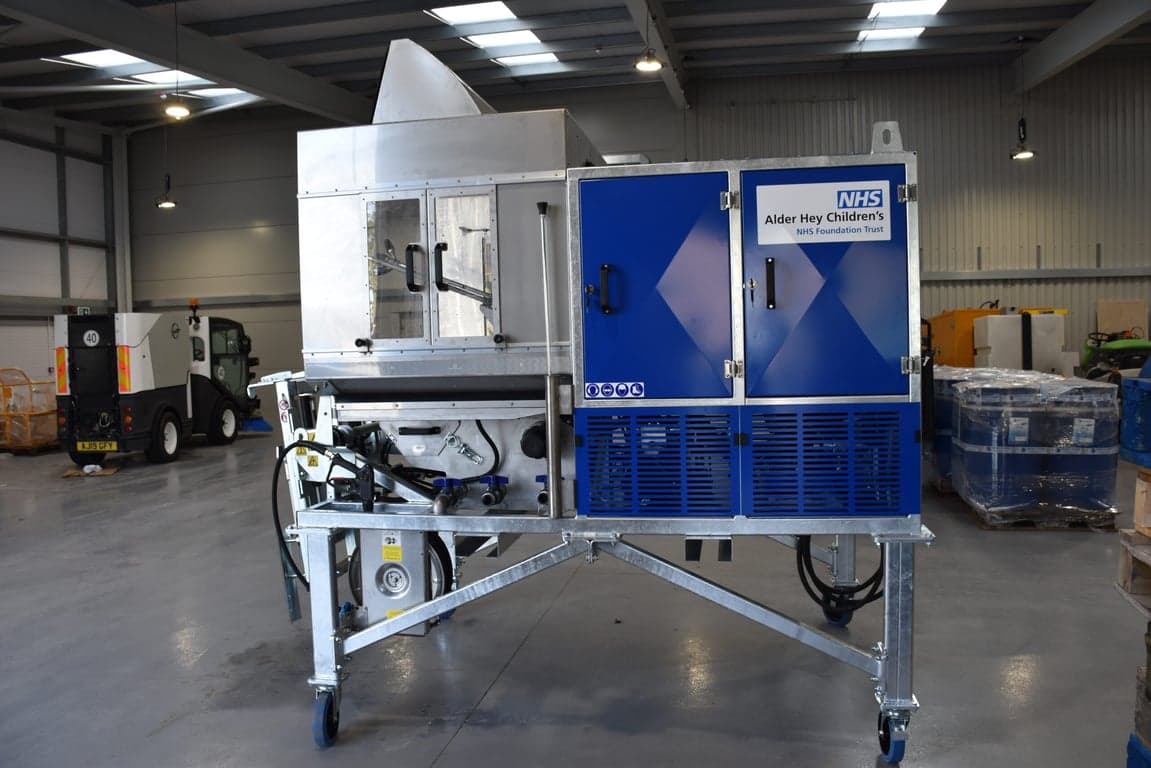

The machine incorporates and on-board electric motor, pumping and filtration system along with a hydraulic bin lifting system. The machine is powered via a 62amp, neutral, earth power supply from site, once the machine is p-lugged in and the water source if attached to the fill point, the machine can go to work.

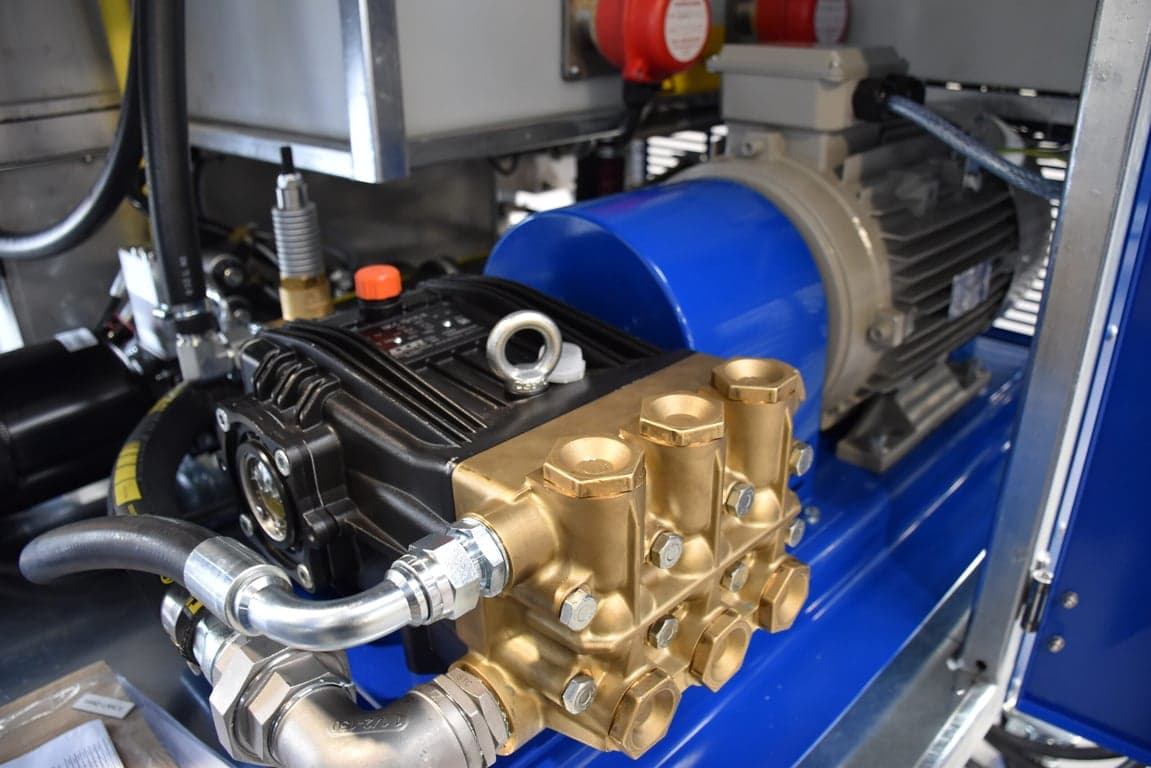

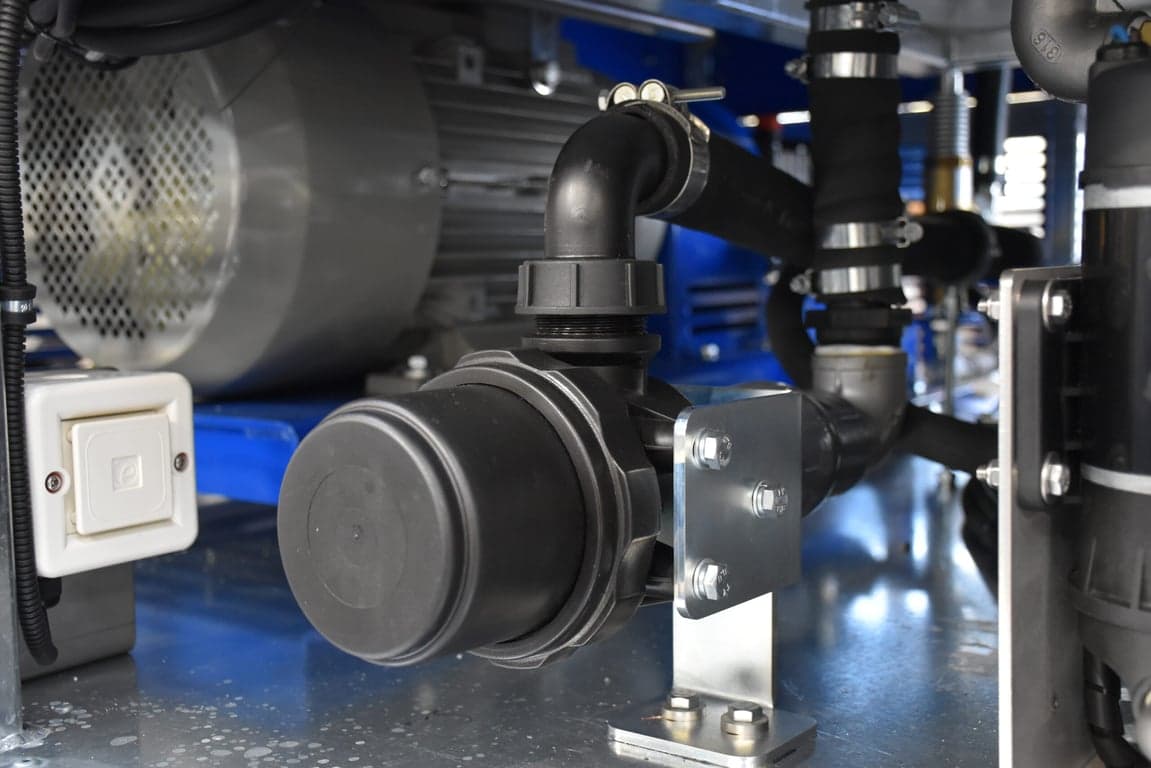

The Udor pumping system delivers water through the auto wash heads at a rate of 80 litres per minute at 110bar. With an internal header tank, the water never runs out. The machine is designed to be constantly connected to a mains water supply allowing for auto top up of the header tank due to loss of water from atomisation or dripping from the bin. The same water is used throughout the working day and is recycled and filtered while in operation. The machine requires one discharge and clean down per day which saves on the sites water usage.

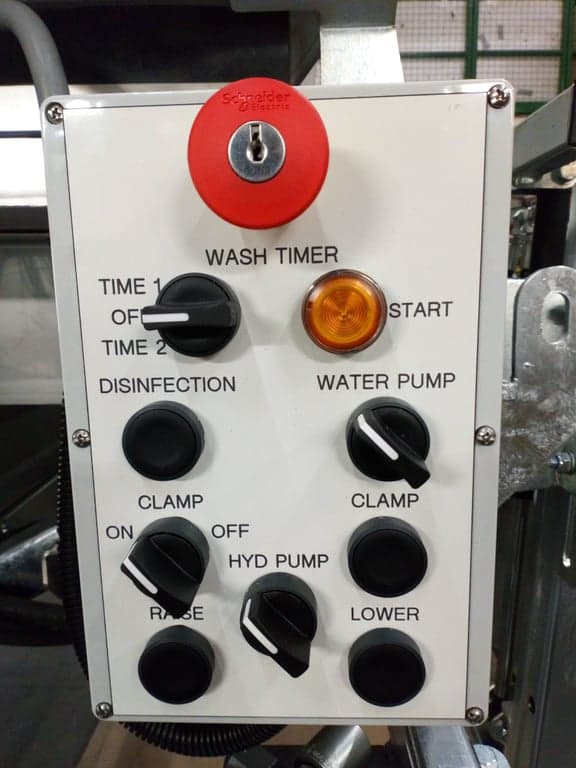

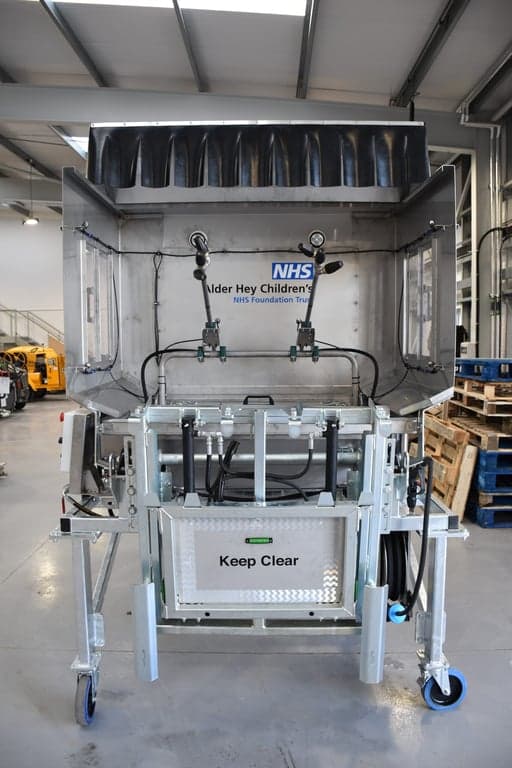

The bins are clamped, lifted and rotated into position via a hydraulic bin lift via the push of a button. The operator interface located on the side of the machine allow for the operator to control the various aspects of the machine safely and hassle free. As the machine draws its starting power from the gel battery, the battery is charged via the on-board generator. The wash bay is enclosed with stainless steel splash guards and rubber curtains which limit the amount of water leaving the wash area while in operation.
The machine can be powder coated in the customer’s choice of colour and is supplied with an operator manual. Additional options and extras are available – for example, larger water pump, additional cleaning lances, flashing beacons etc. Please contact us for more details.
- Onboard water recycling system
- 2 x Automatic bin cleaning nozzles

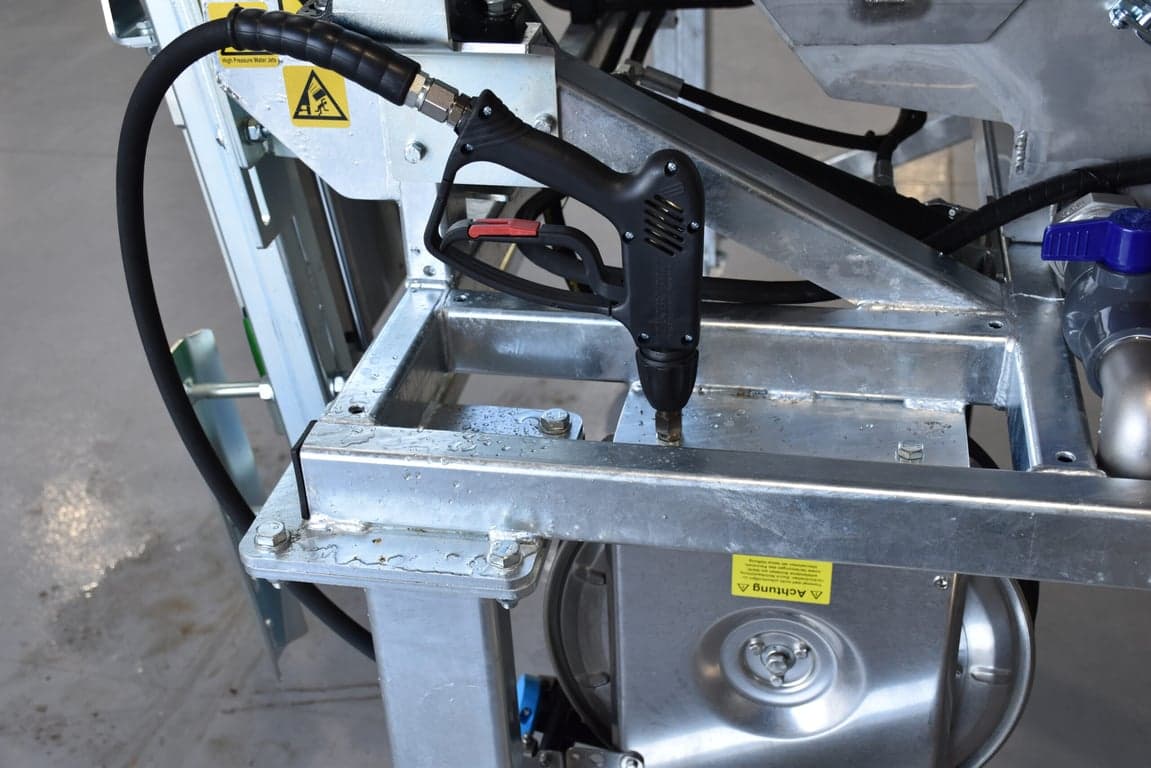

- 1x hand lance and tooling
- Rear facing LED lights.
- Stainless steel wash enclosure
- Fully galvanised chassis

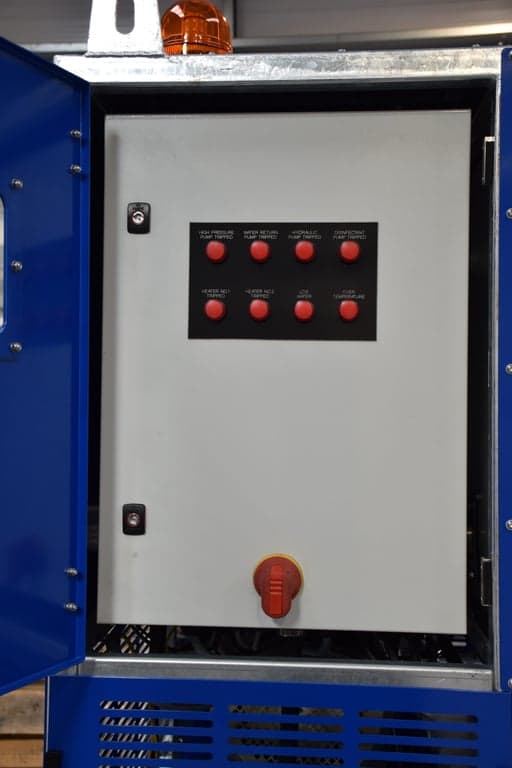

- Switch trip-controlled operating system
- Push button operational controls.
- Hydraulic bin lift
- Removable filter trays and bowls
- Quick release couplings for the application additional water tanks
- Decibel tested.
- Lifting eyes for installation
- Powder coated in the customer’s choice of colours.
- Assistance with the fitment of the machine to the vehicle at our depot in Norfolk UK.
Pump Pressure (bar/psi): 110/1600
Pump Flow (l/min): 80
Dimensions (mm) 2700(L) x 1650(W) x 1760(H)
Weight Unladen (kg): 1050
Weight Laden (kg): 1400
Larger Water Pump
Additional Cleaning Lances
Flashing Beacons
Wet vacuum
Hot water boiler (with Flue)
Disinfection/deodorisation pipe work and nozzles
Auto Oscillation
Bin lifting side trunnions
