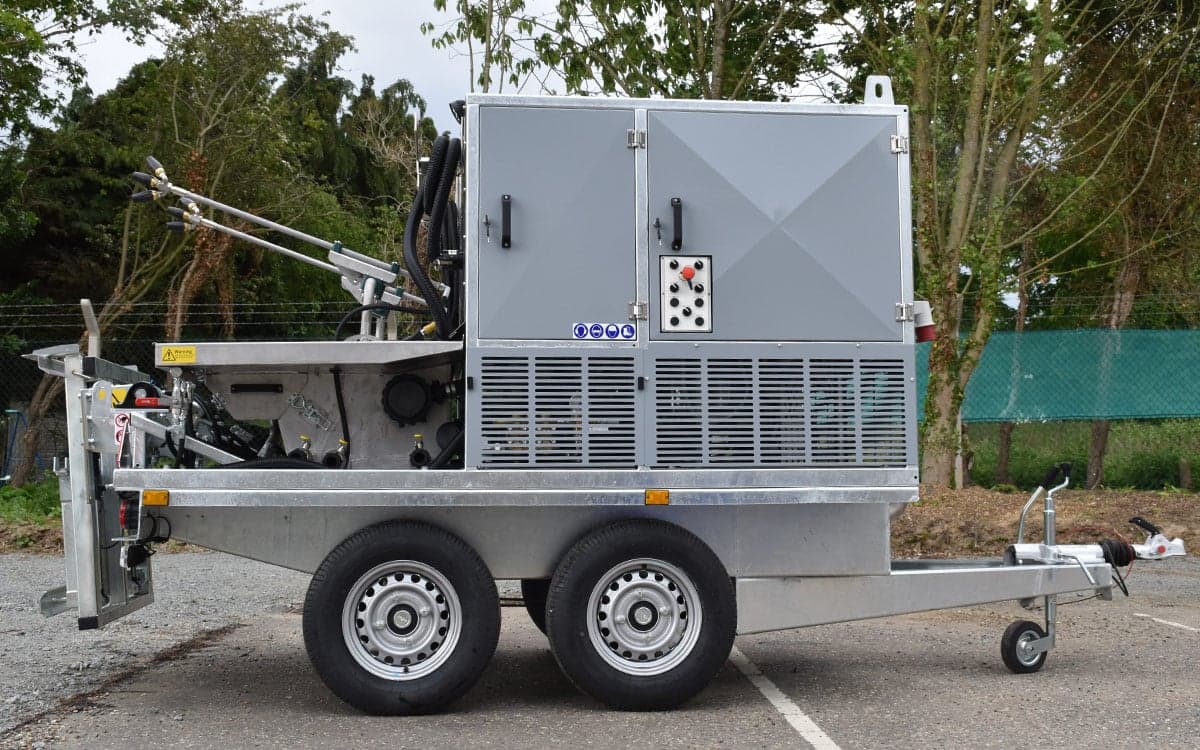

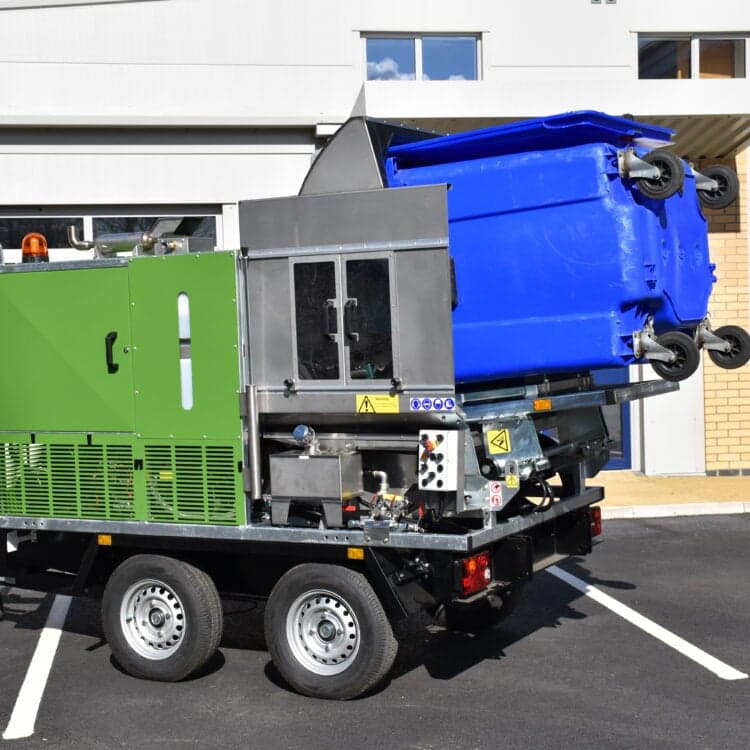

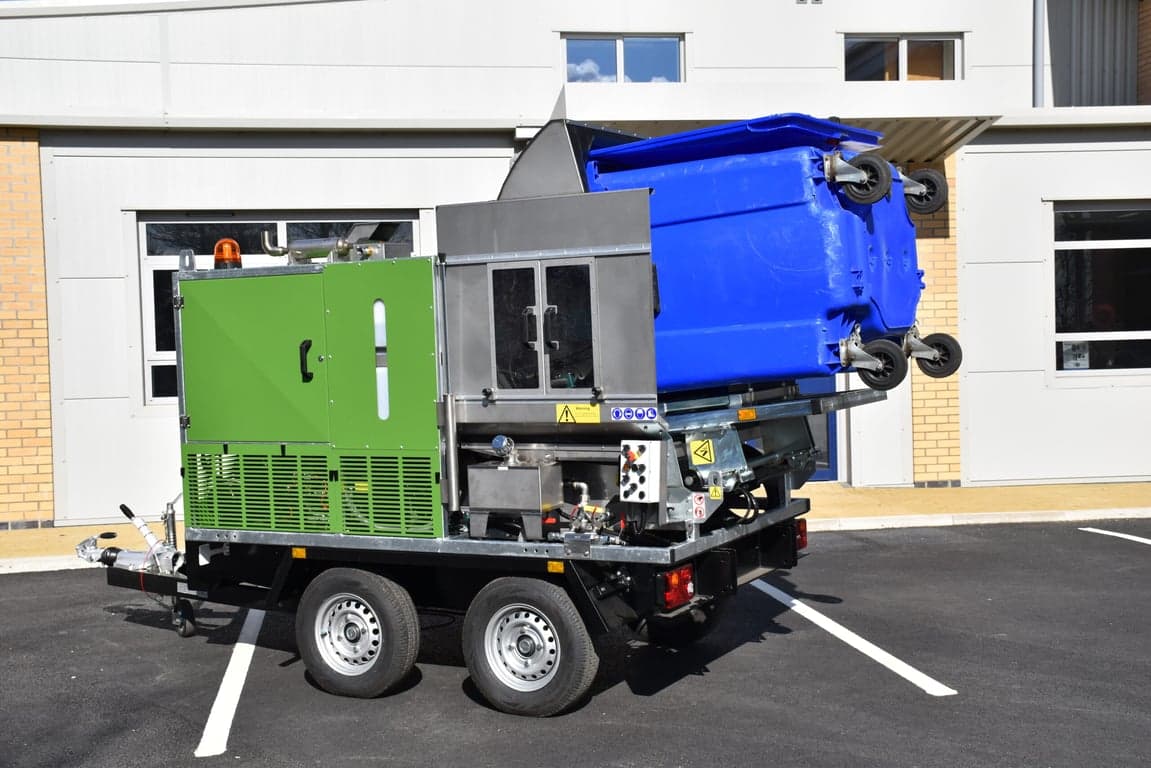

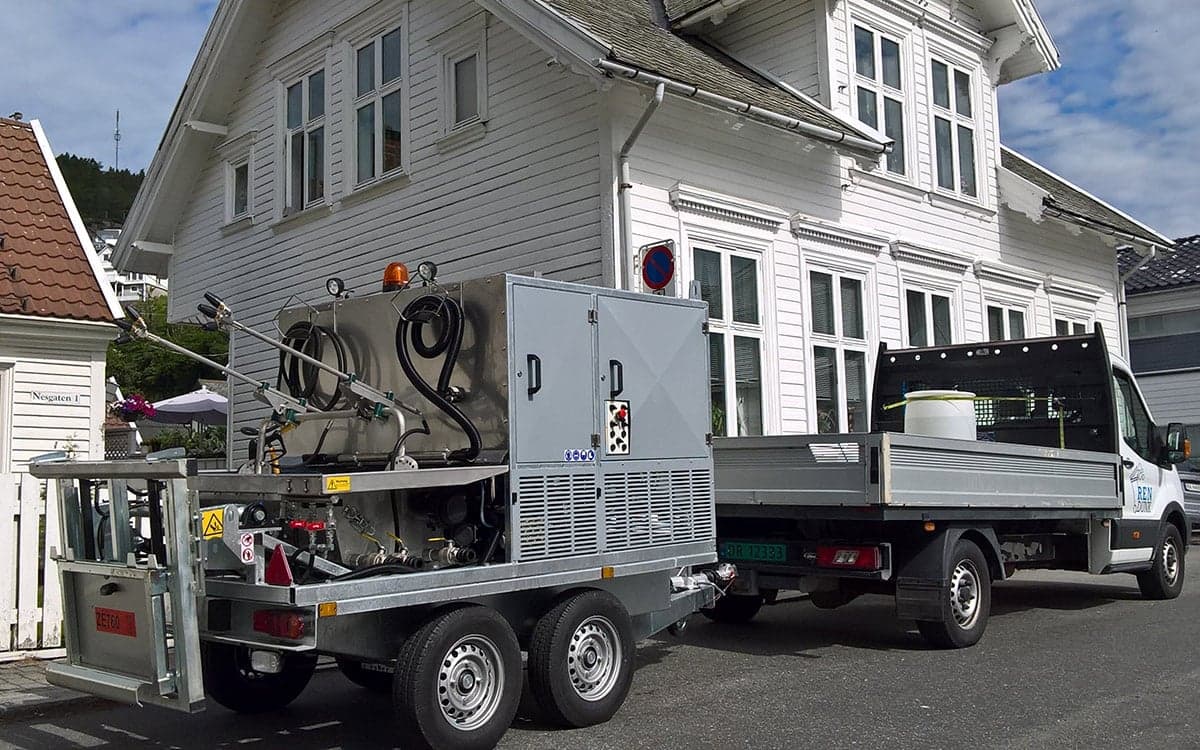

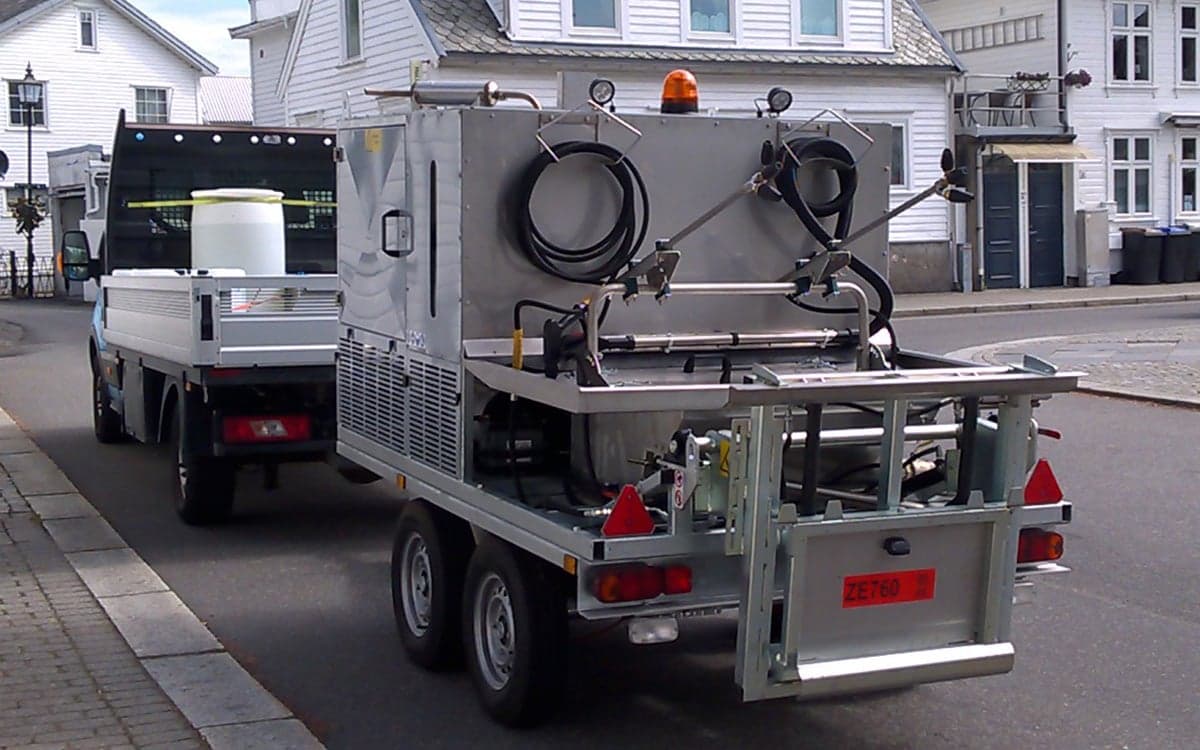

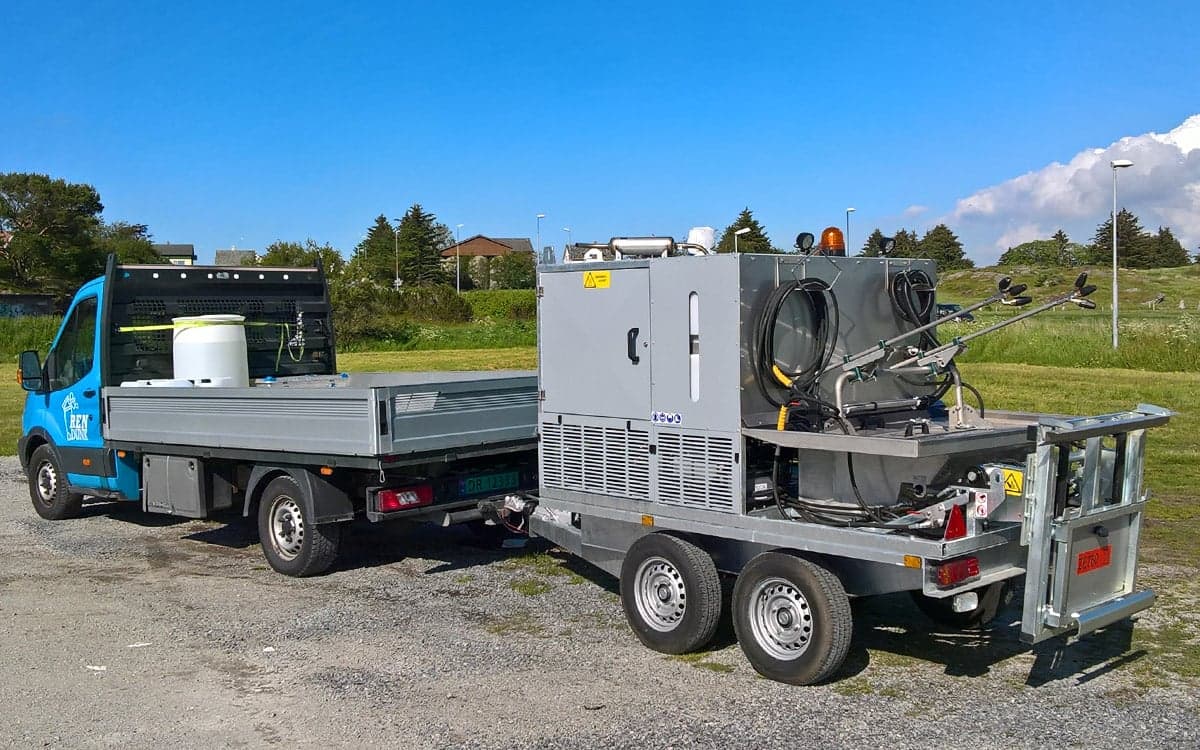

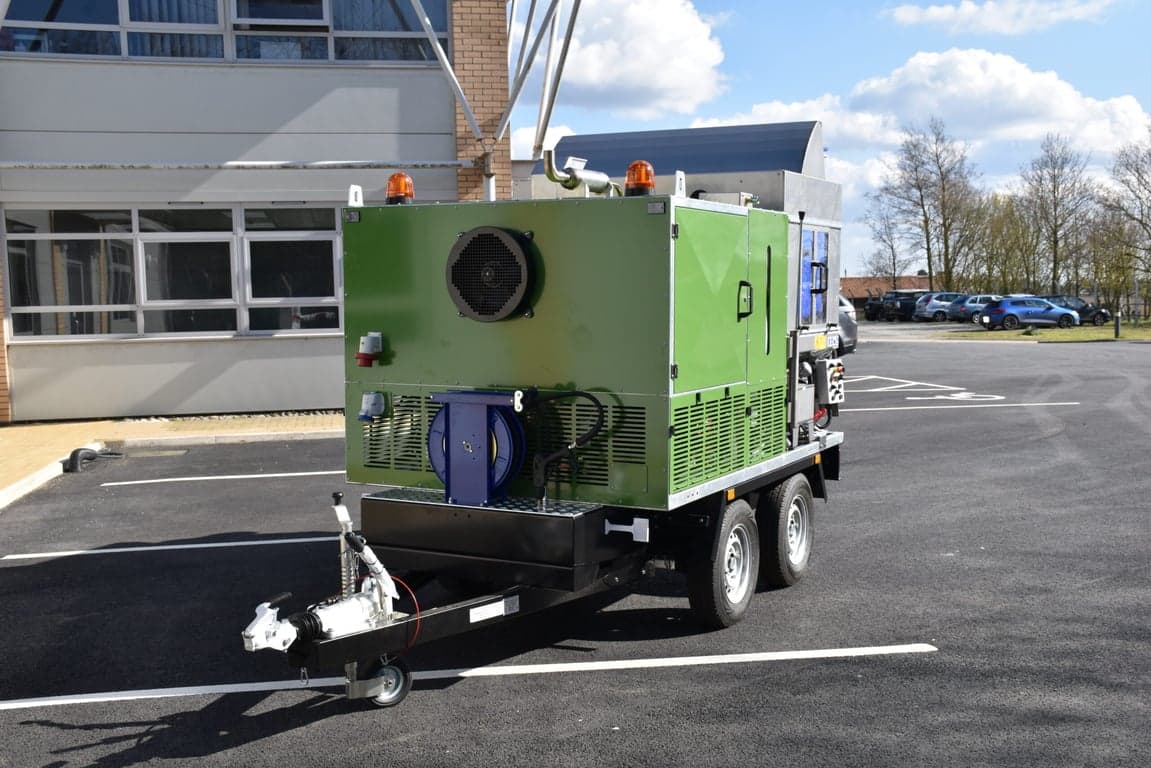

Designed and Manufactured in house to EC machinery directives and supplied with an IVA test certificate. This gives the customer reassurance that it conforms and is legal to tow and use on the public highways.The machine is manufactured as a tow-able trailer on two braked axles along with a lockable tow hitch for security.

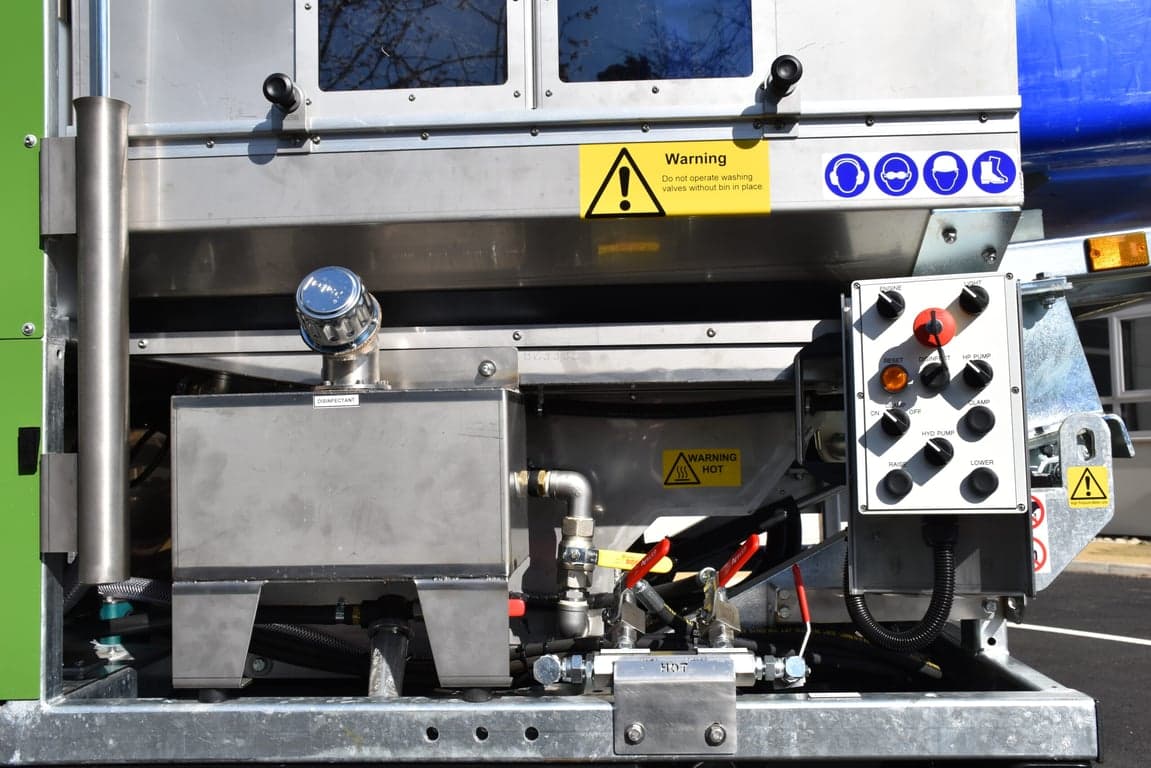

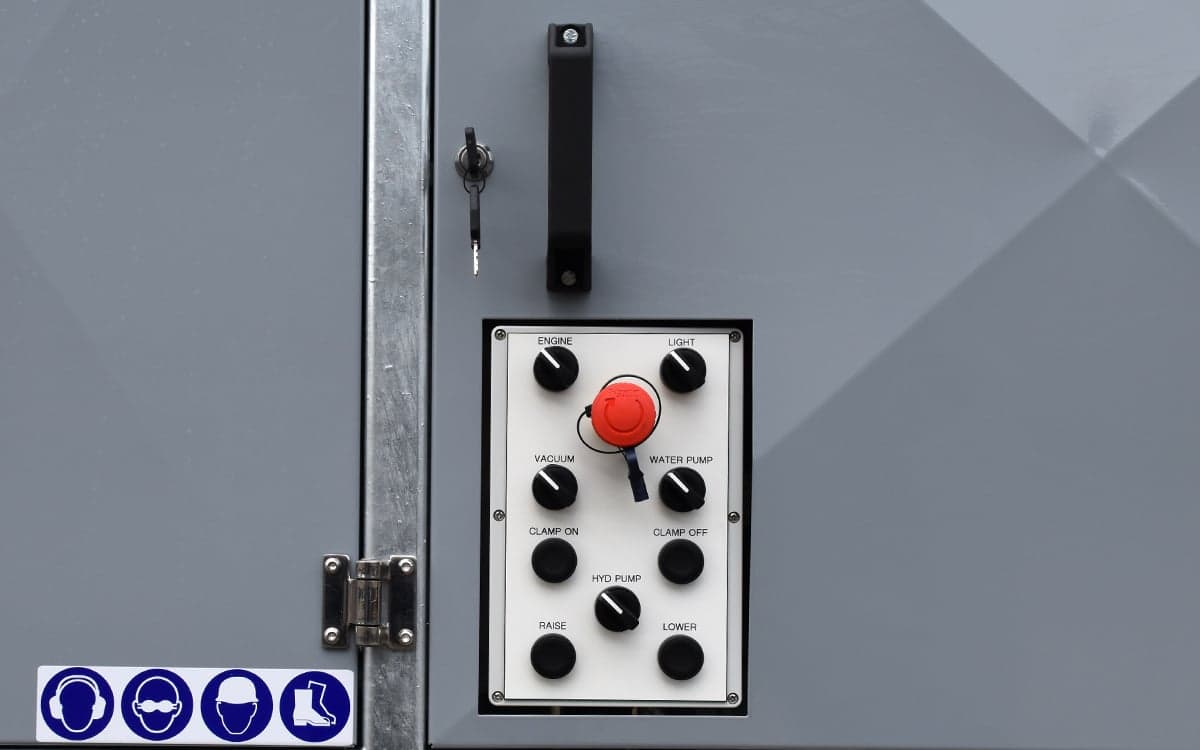

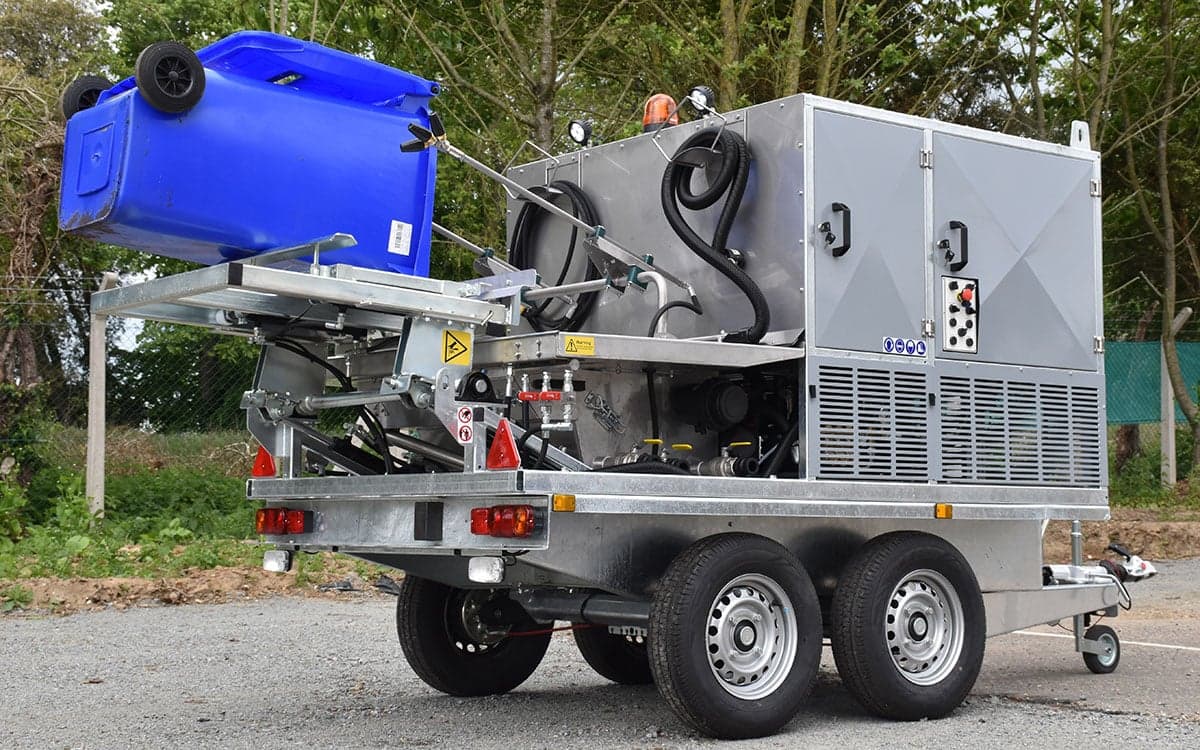

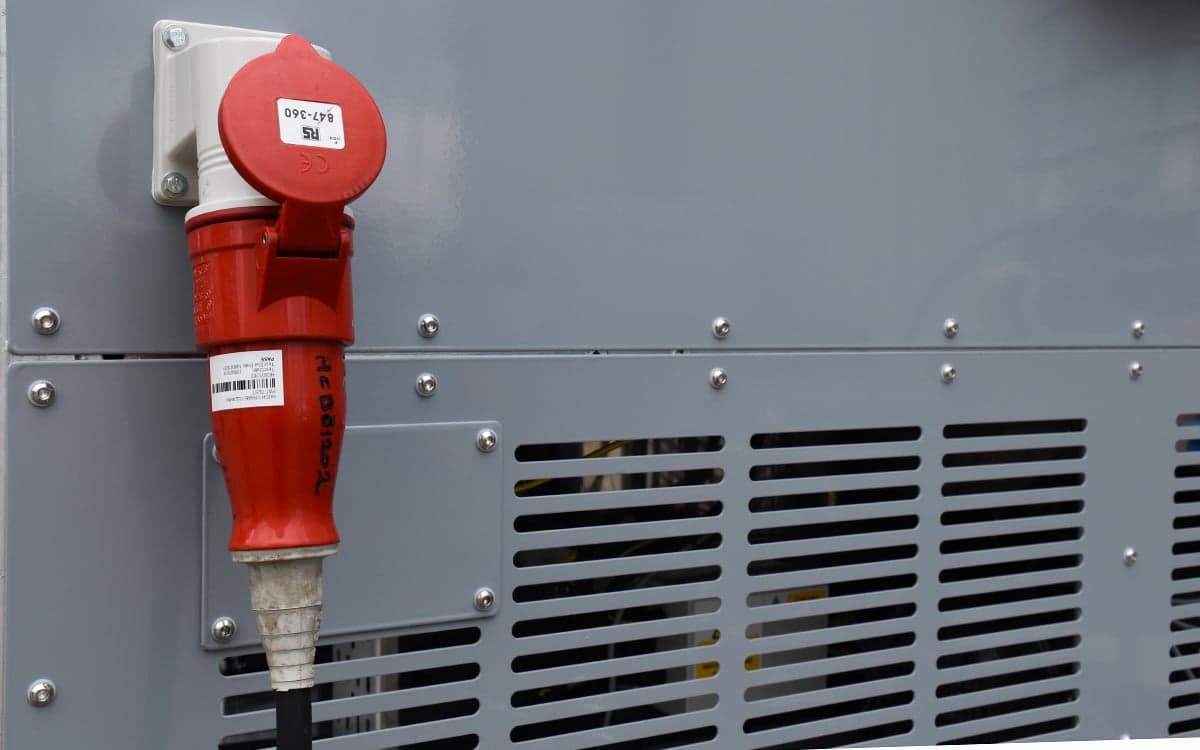

The power to wash the bins comes from a Udor 31 ltr a minute pumping system and a 18 horse power vanguard petrol engine OR on-site electric supply. This makes the machine incredibly versatile allowing the machine to operate both indoors and out. The bins are clamped, lifted and rotated into position via a hydraulic bin lift with the push of a button. The operator interface located on the side of the machine allows for the operator to control the various aspects of the machine safely and hassle free. The machine generates it own power allowing for total self contained operation therefore removing the need of external power supplies.

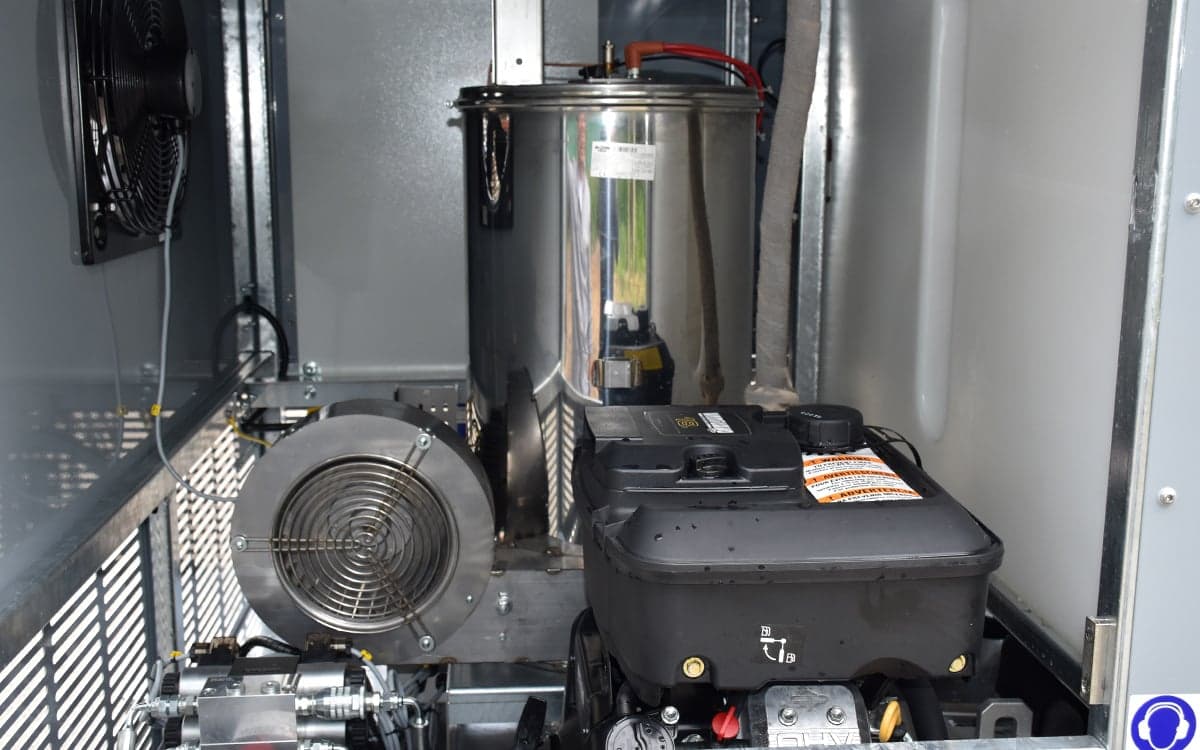

The wash water is filtered and recycled throughout the working day and is heated to 60 degrees via a gas-oil boiler fitted within the body of the machine. The machine is fitted with a wet vacuum for removing water from within the clean bin.
The machine can be powder coated in the customer’s choice of colour and is supplied with an operator manual.
- Onboard water recycling system
- 2 x Automatic bin cleaning nozzles

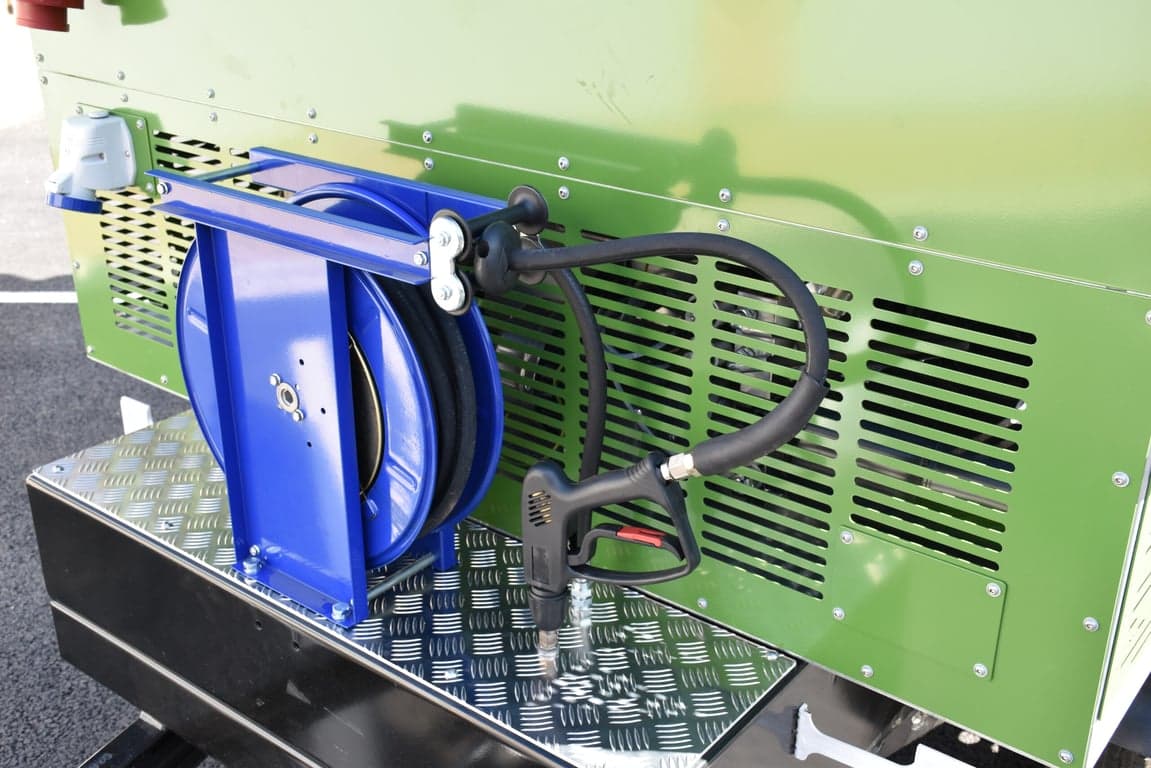

- 1 x hand lance and tooling
- Rear facing LED lights
- Flashing LED beacon

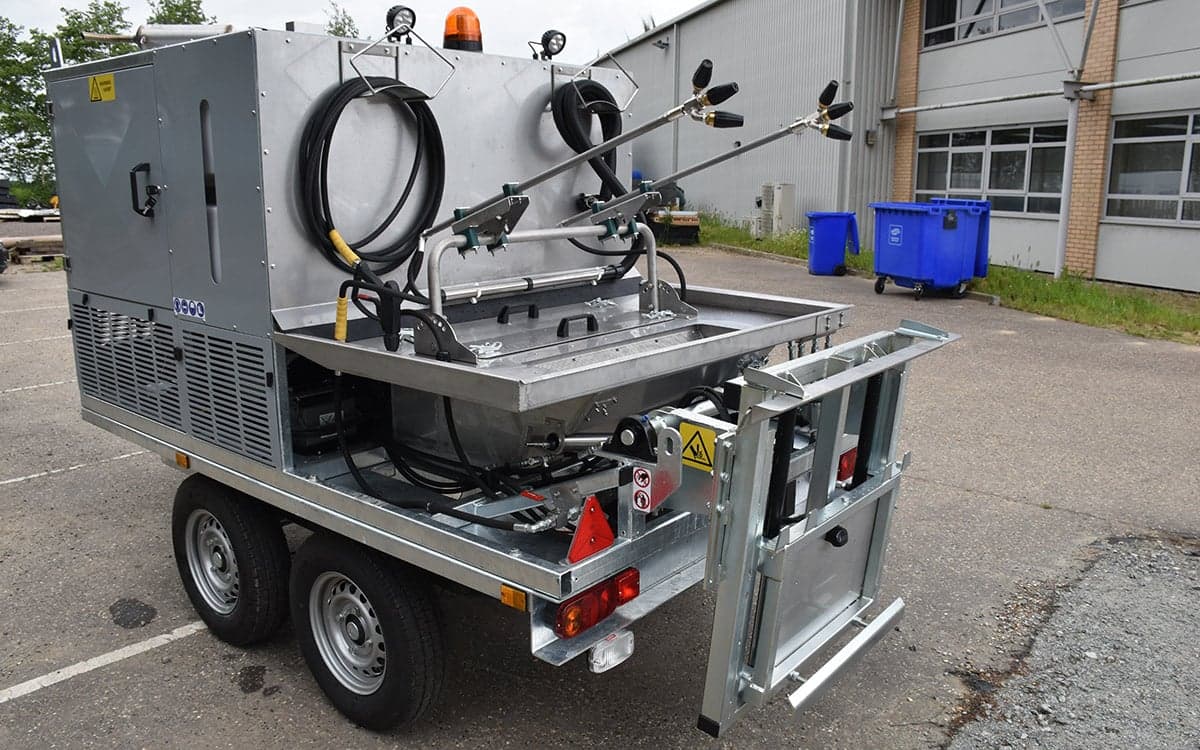

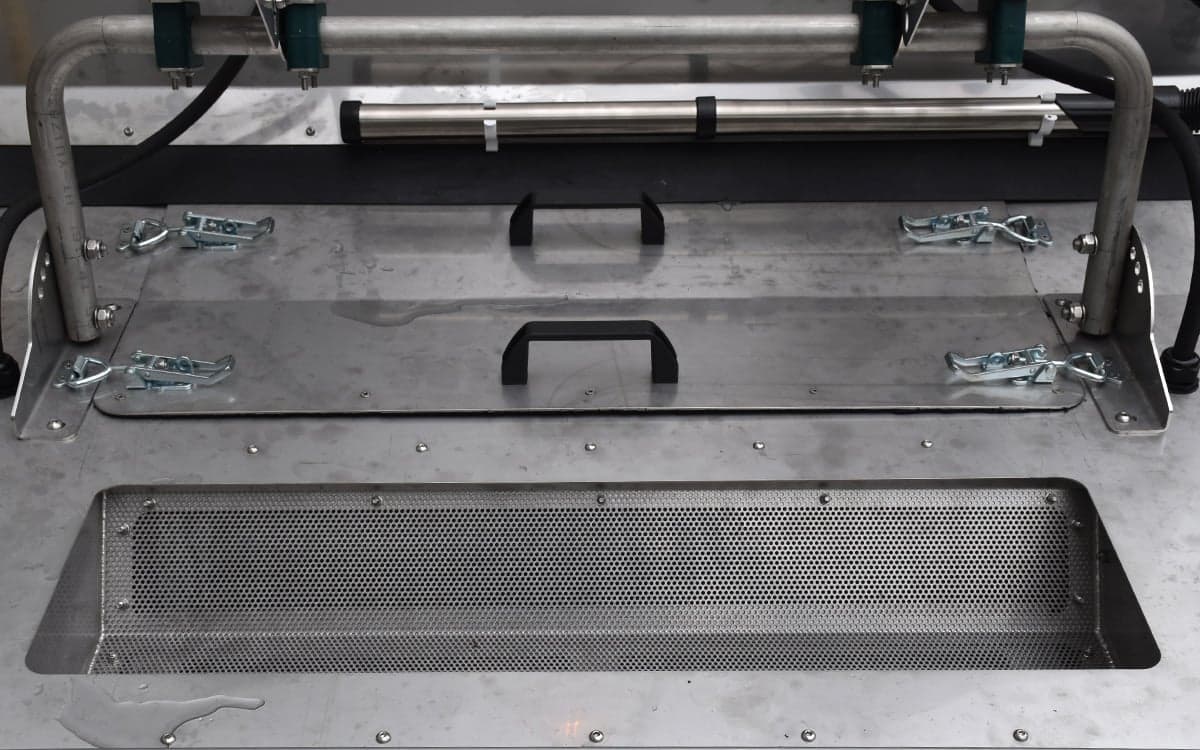

- Stainless steel wash bay
- Fully galvanised chassis
- Switch trip-controlled operating system

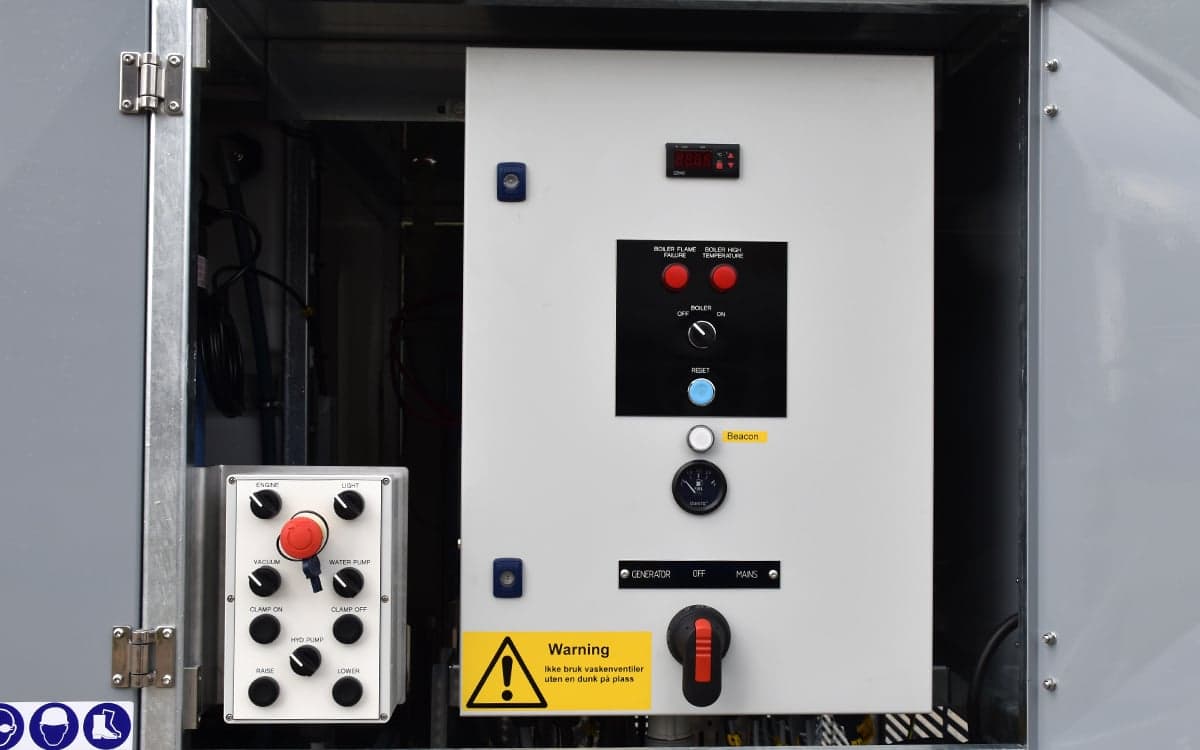

- Push button operational controls

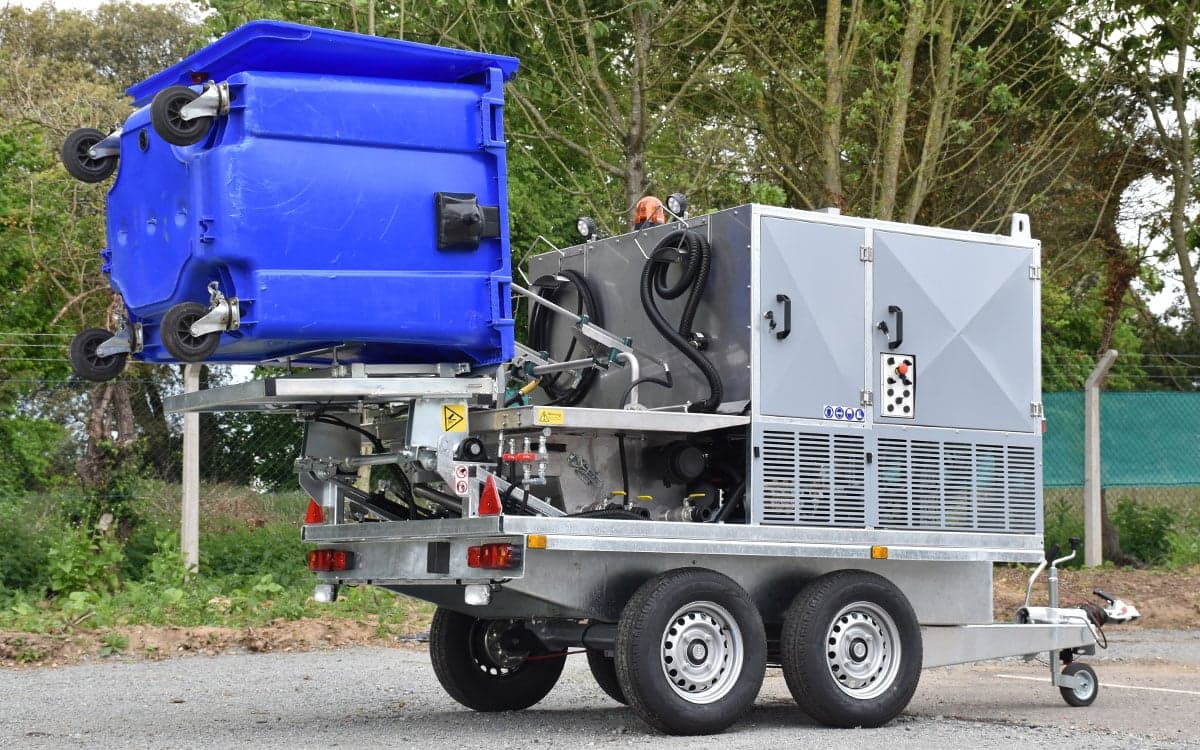

- Hydraulic bin lift

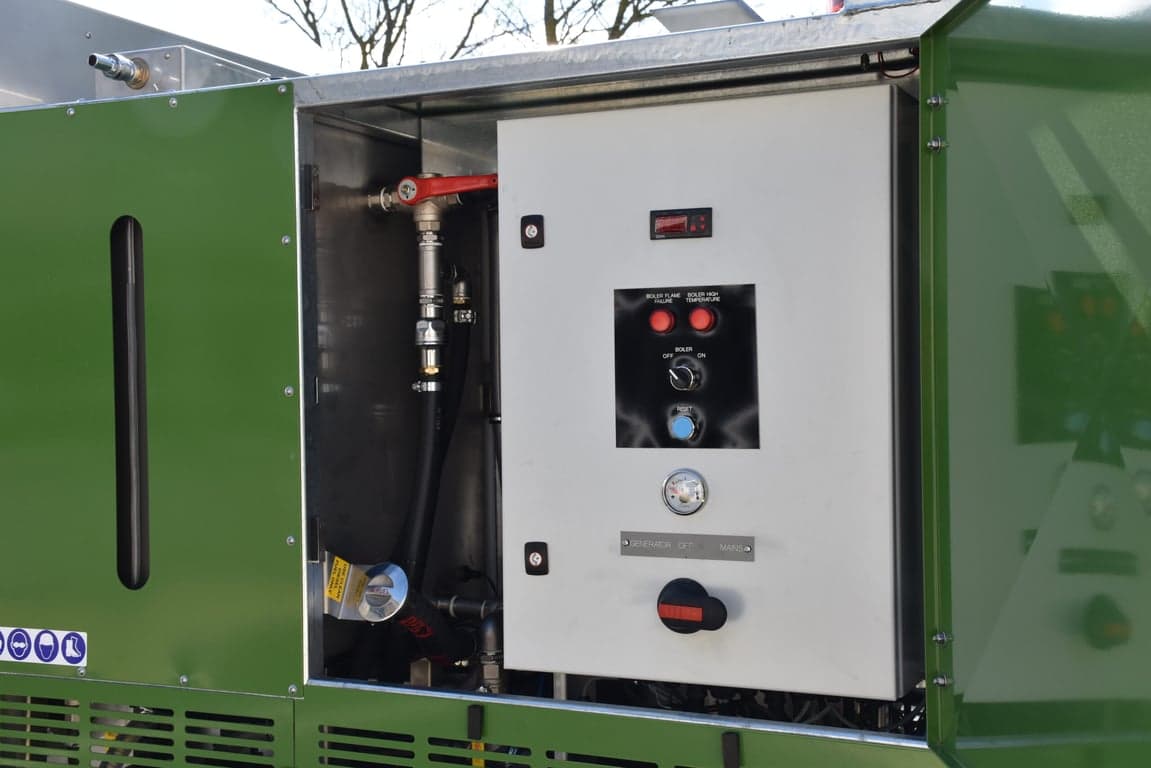

- Gas oil hot water boiler
- Wet vacuum and tooling

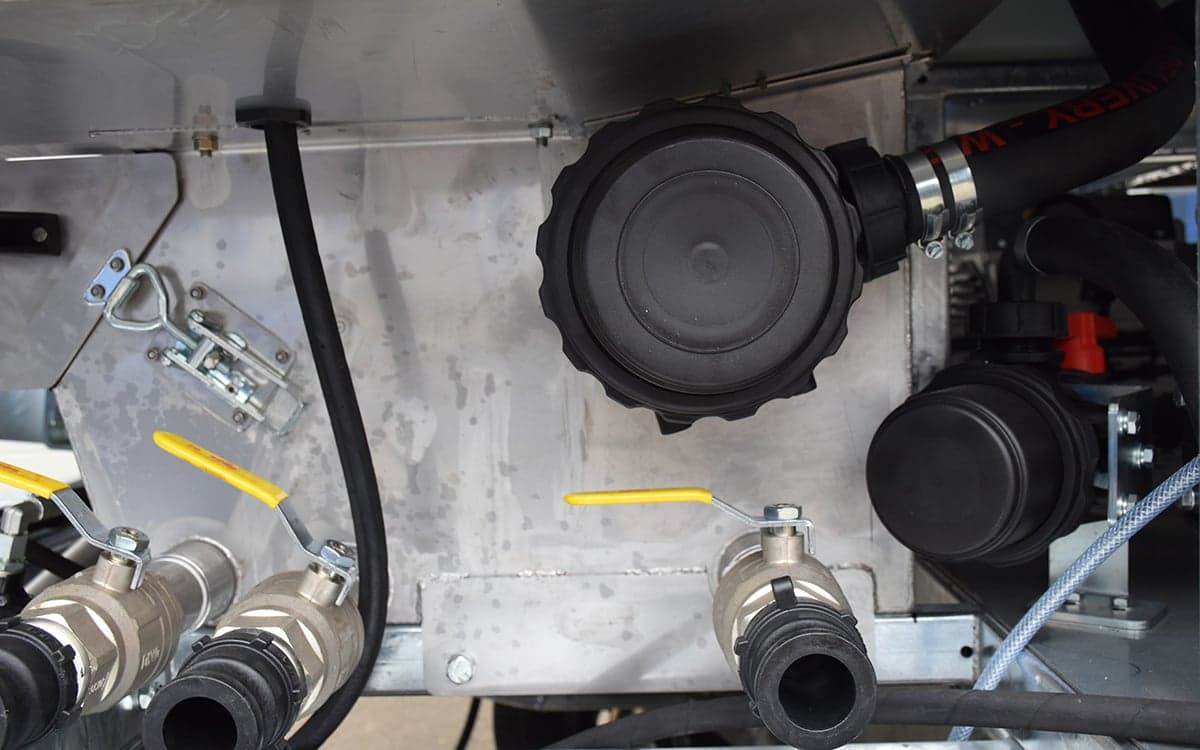

- Removable filter trays and bowls
- Quick release couplings for the application additional water tanks
- Decibel tested
- Lifting eyes for installation
- Powder coated in the customer’s choice of colours
- Assistance with the fitment of the machine to the vehicle at our depot in Norfolk UK.
Generator Voltage (V): 12 DC

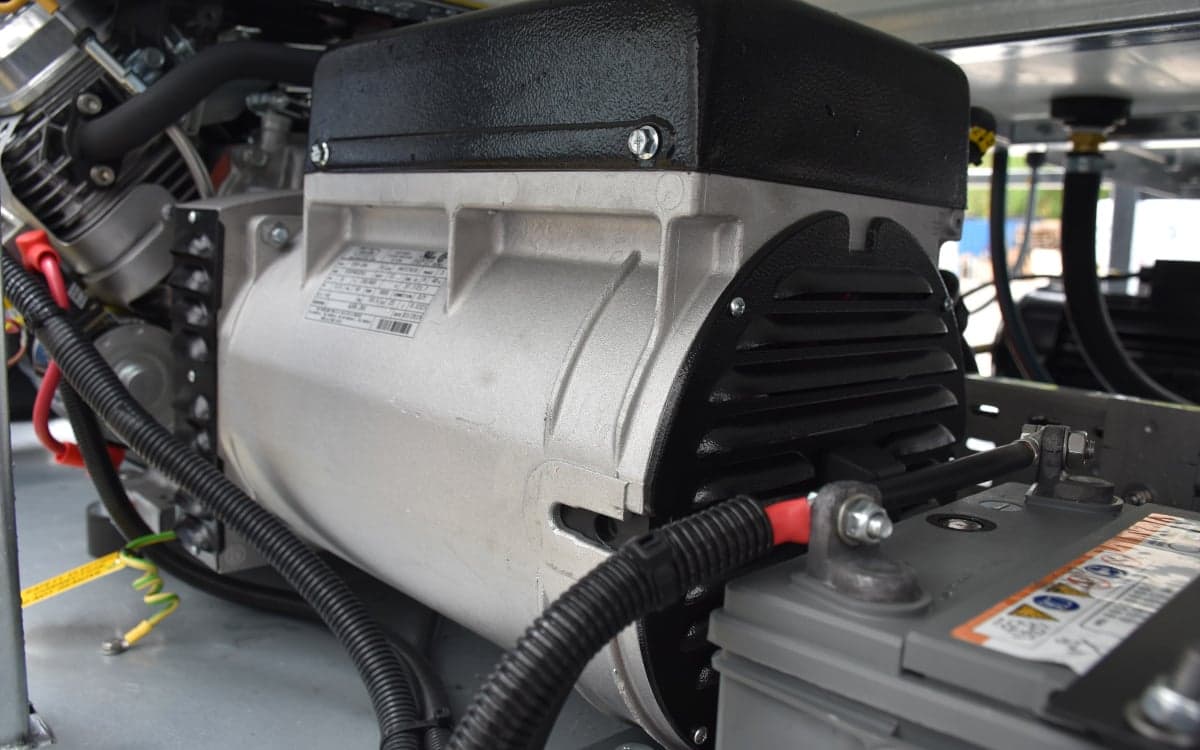

Generator Output (kVA; V; ˜; Hz): 15; 400; 3; 50

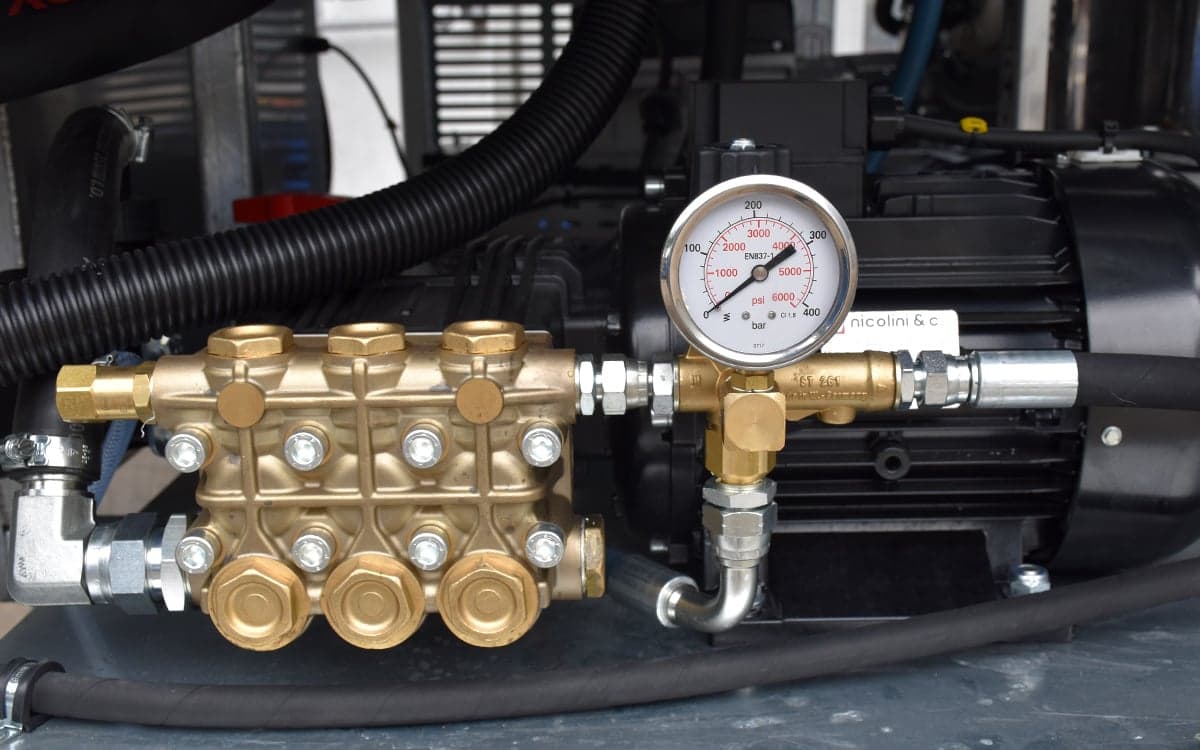

Pump Pressure (bar/psi): 90/1300
Pump Flow (l/min): 31
Dimensions (mm) 3200(L) x 1900(W) x 2200(H)
Weight Unladen (kg): 1420
Weight Laden (kg): 1770
- Larger Water Pump
- Additional Cleaning Lances
- Drain jetting tooling (for small jetting jobs)
