Engineered Solution Gallery

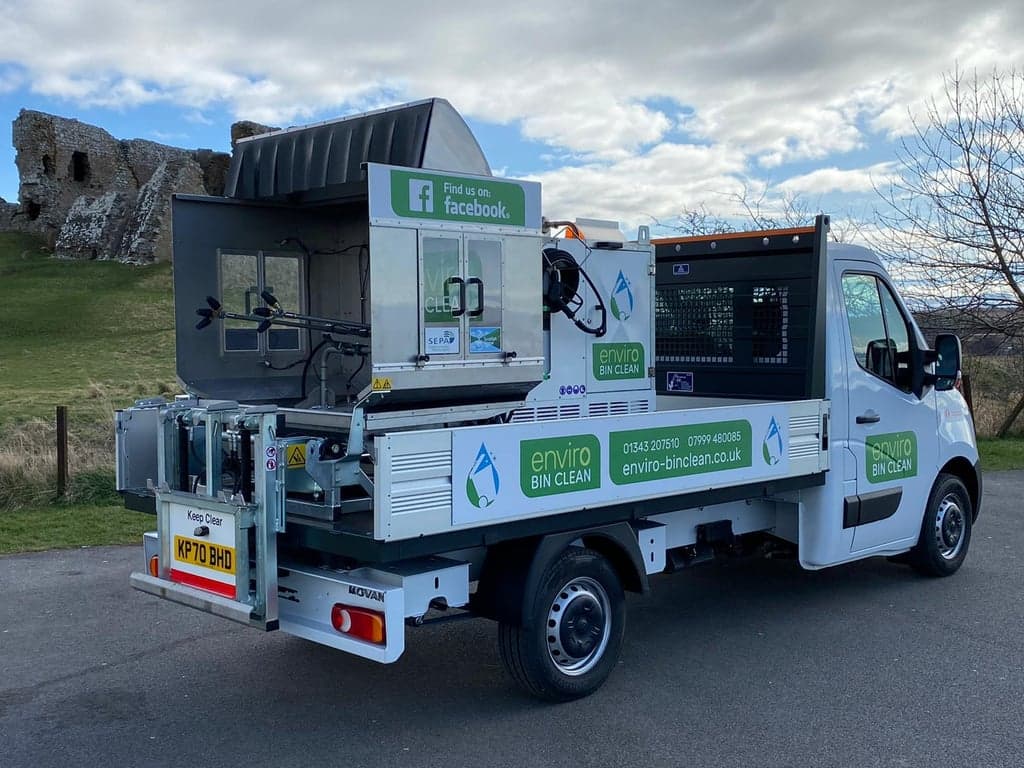

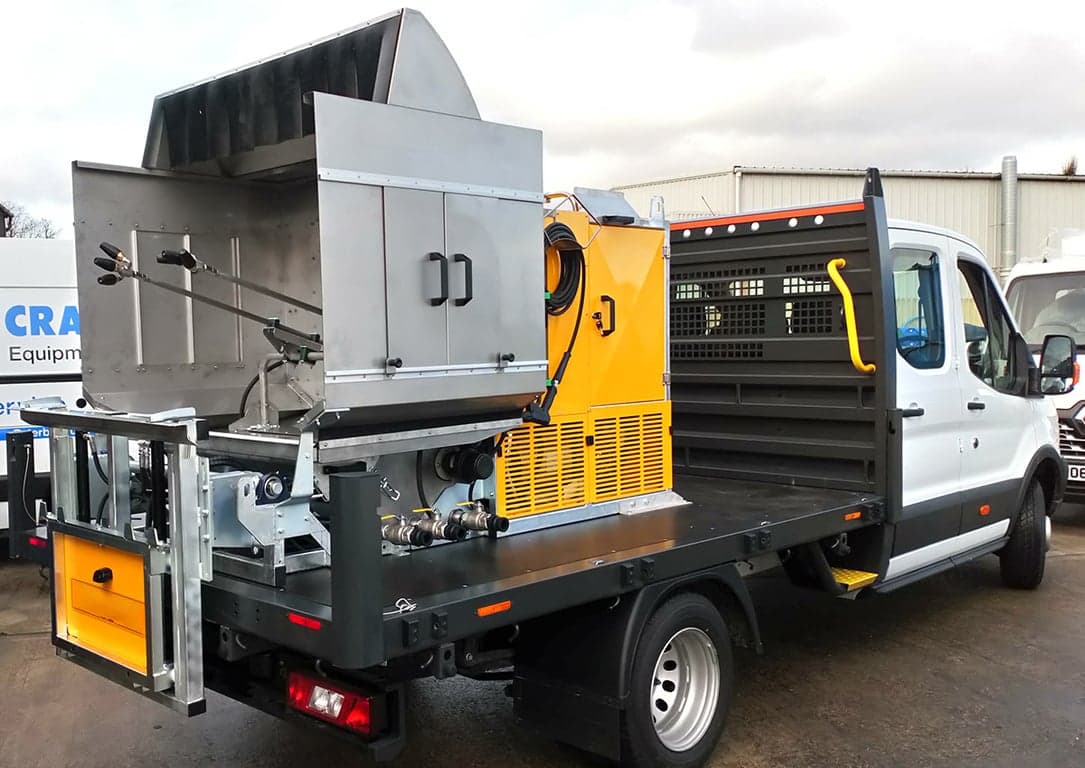

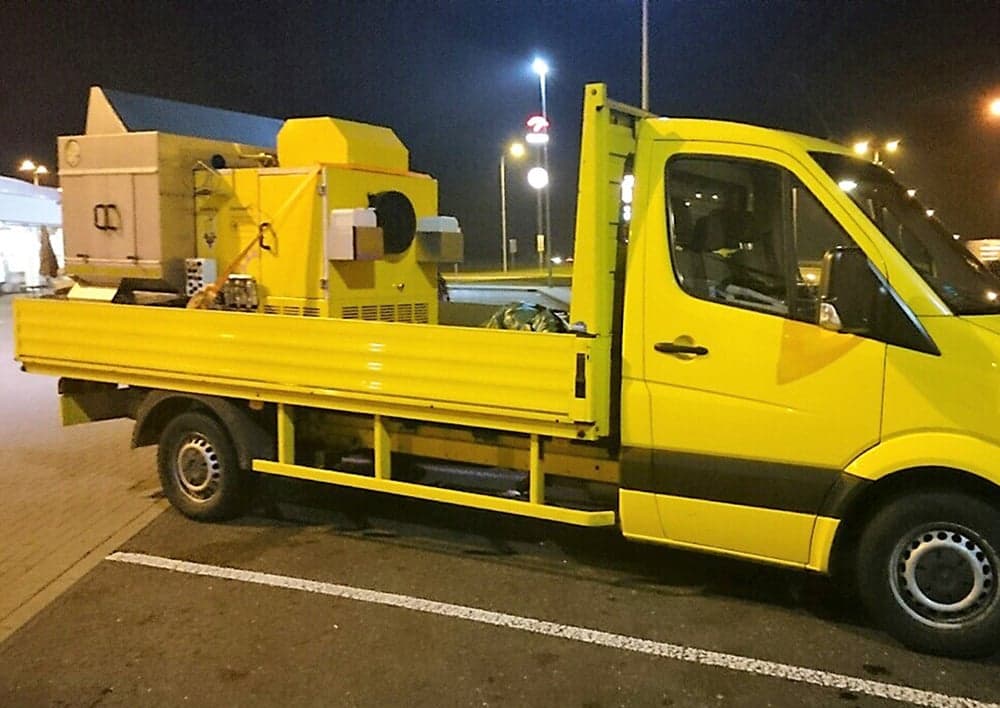

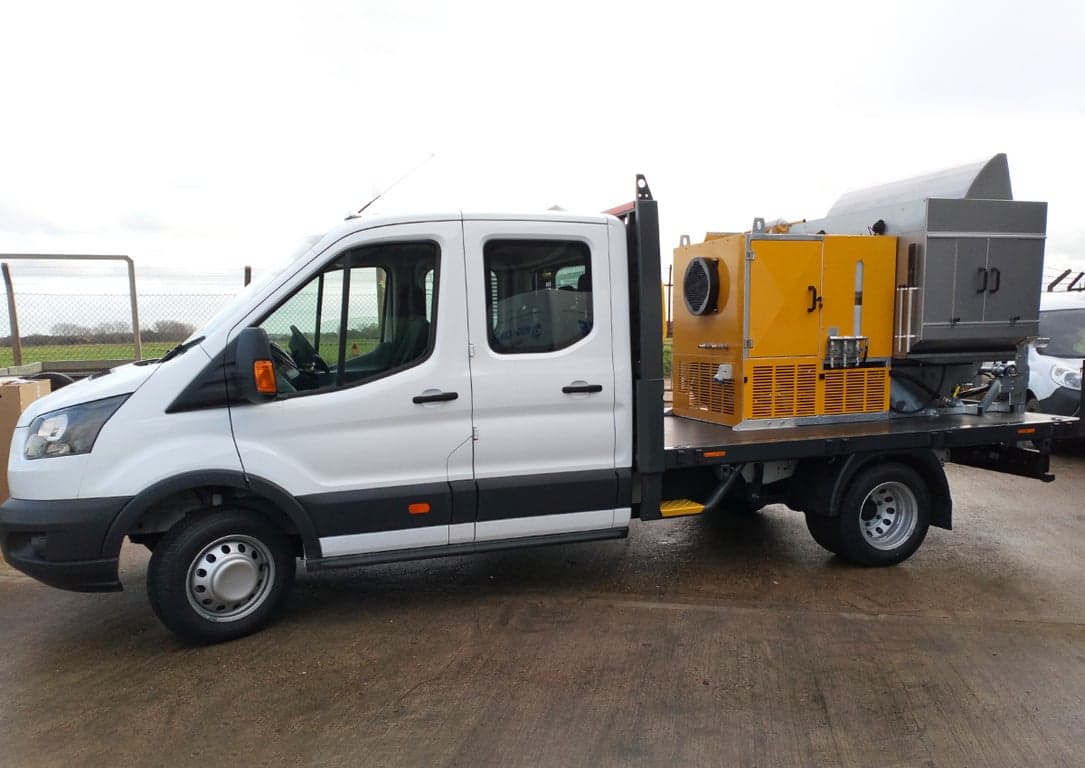

Vehicle Based (Cold Wash)

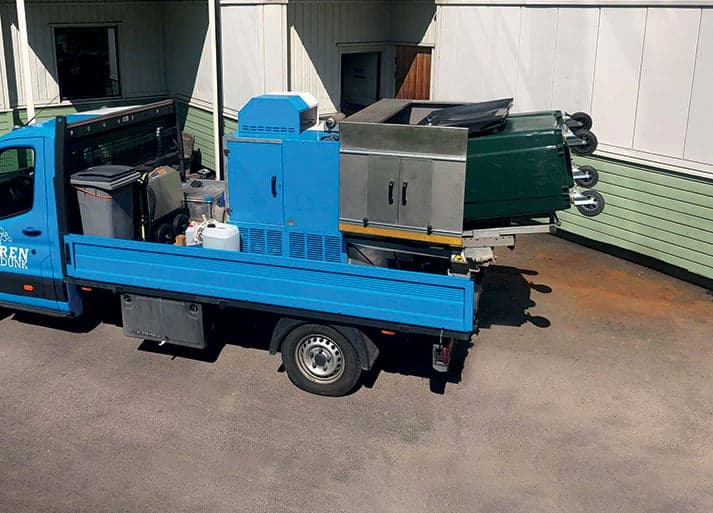

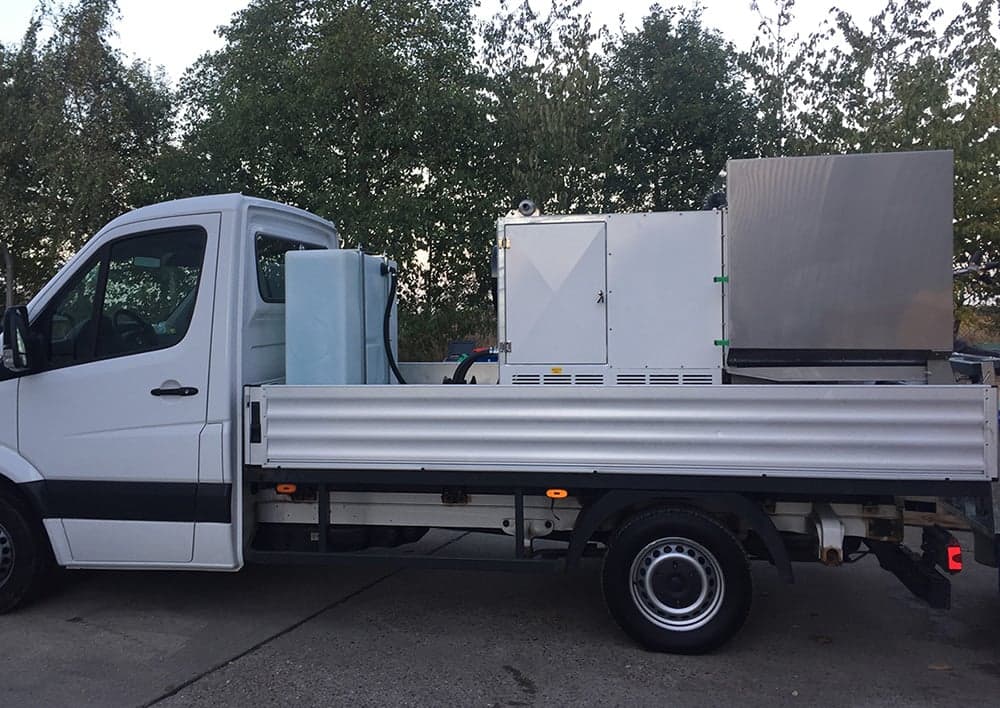

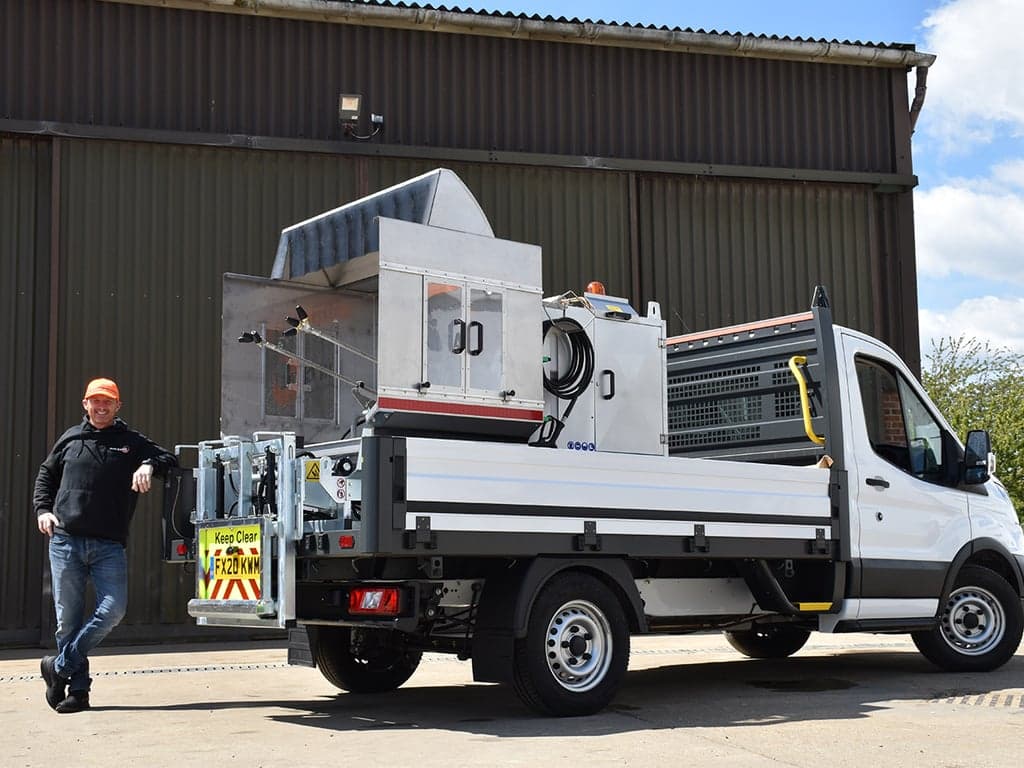

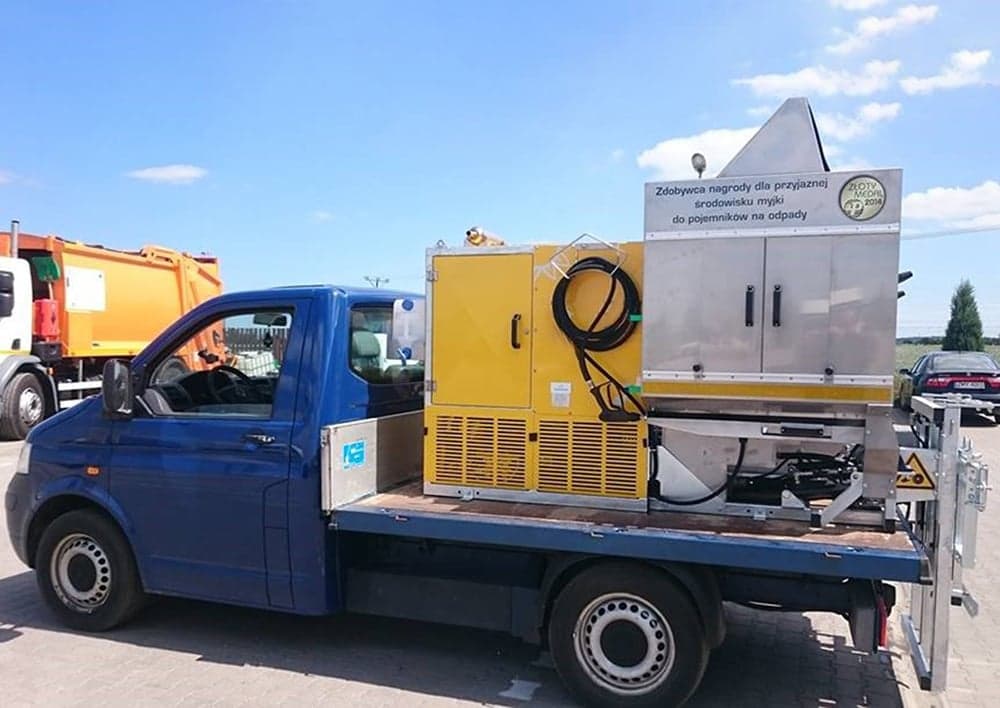

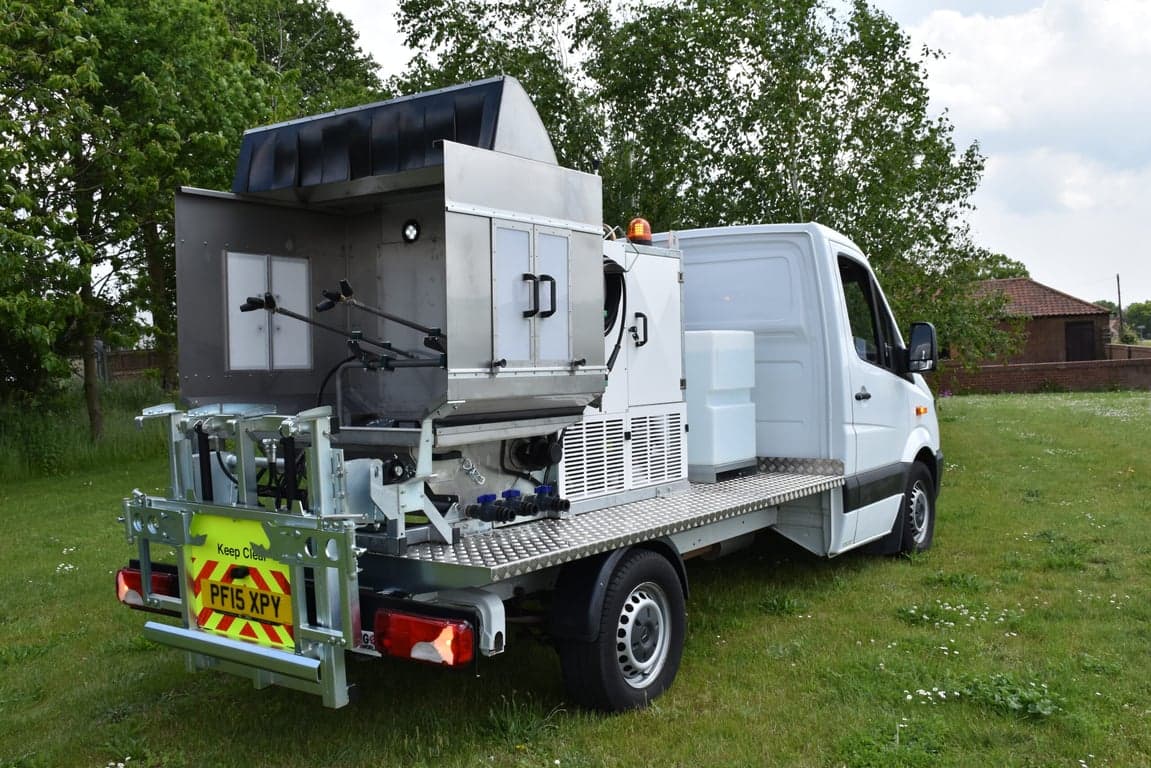

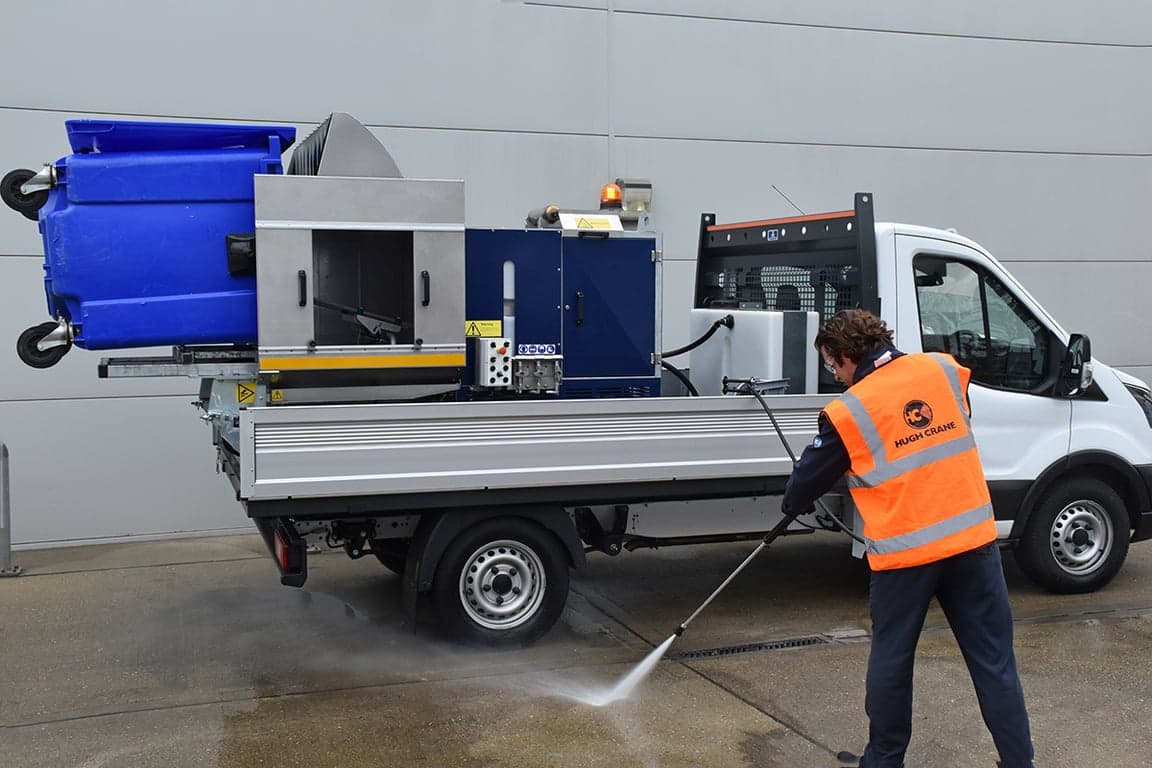

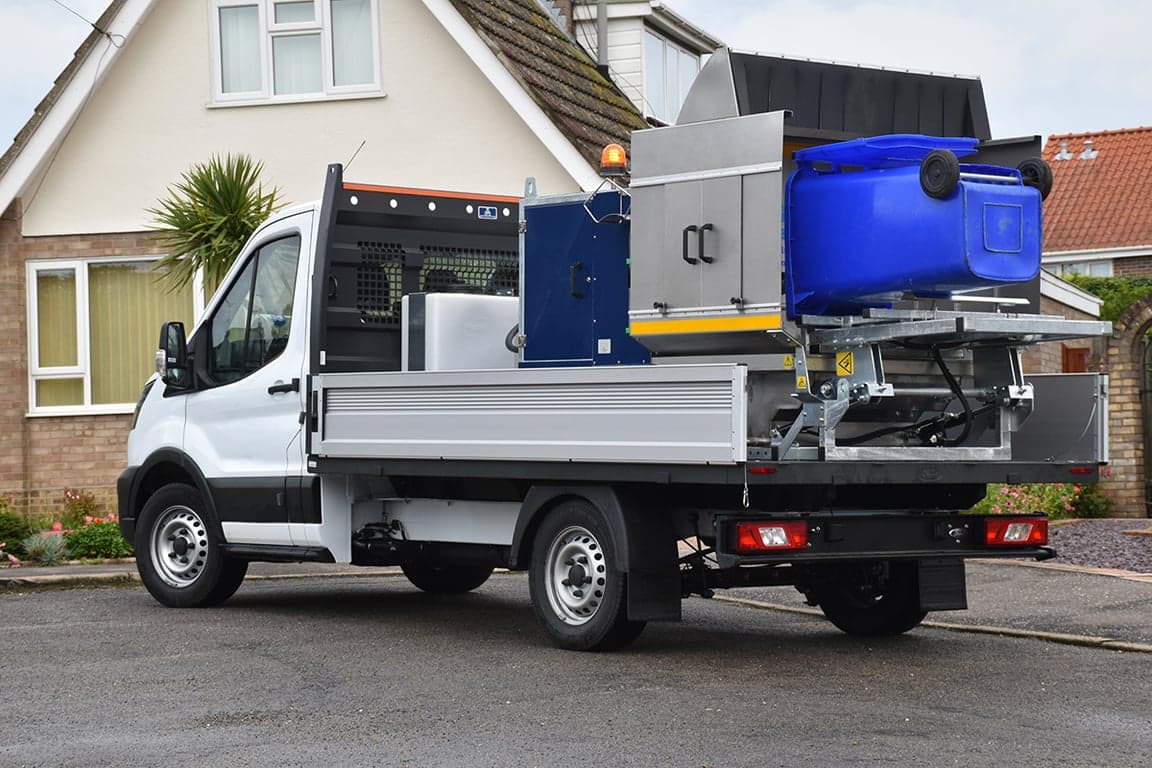

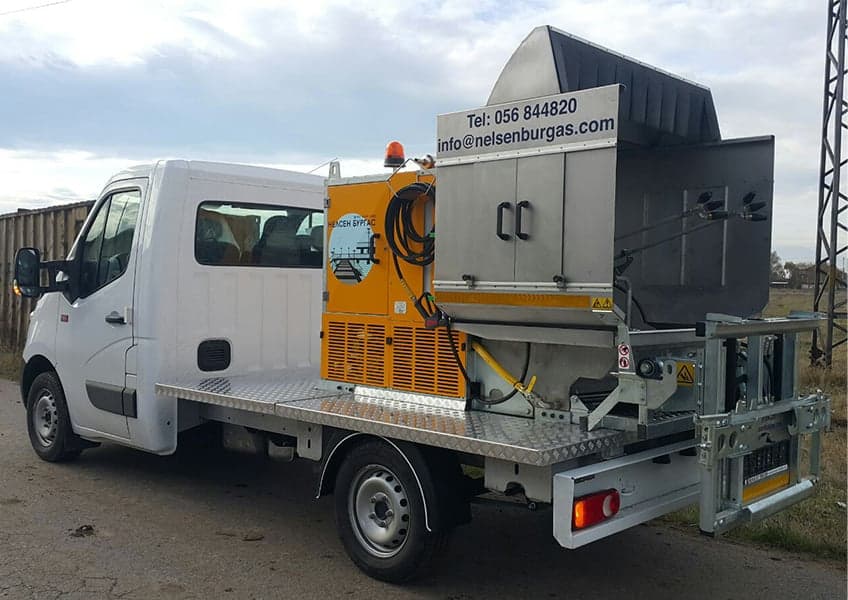

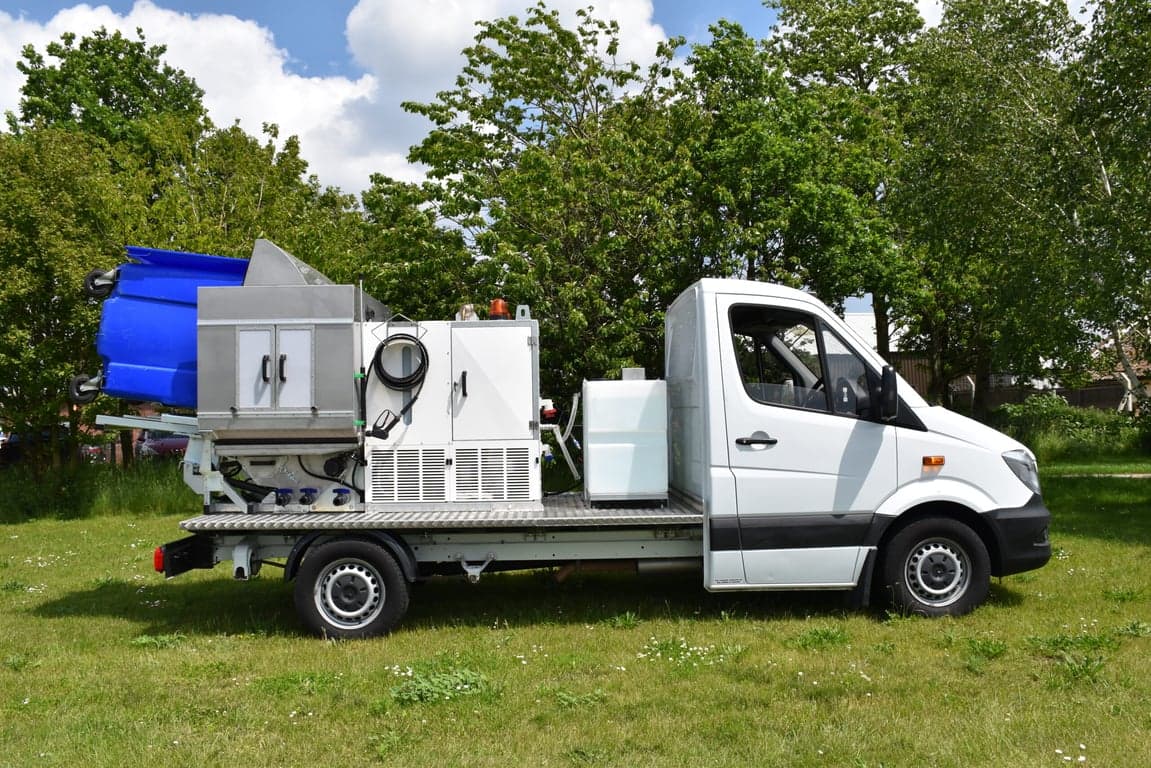

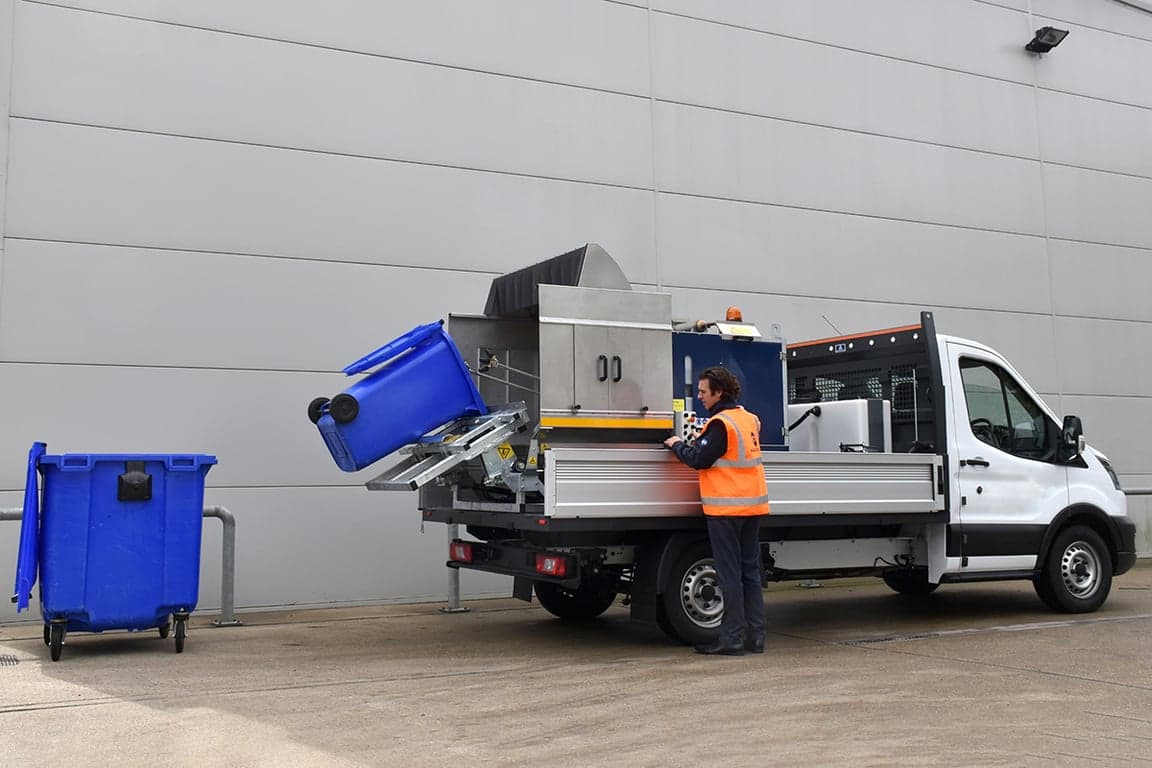

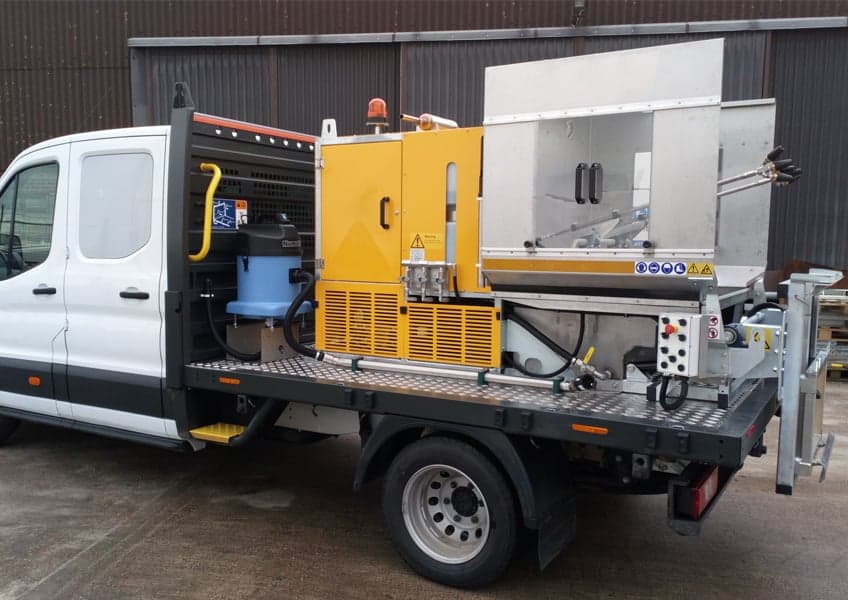

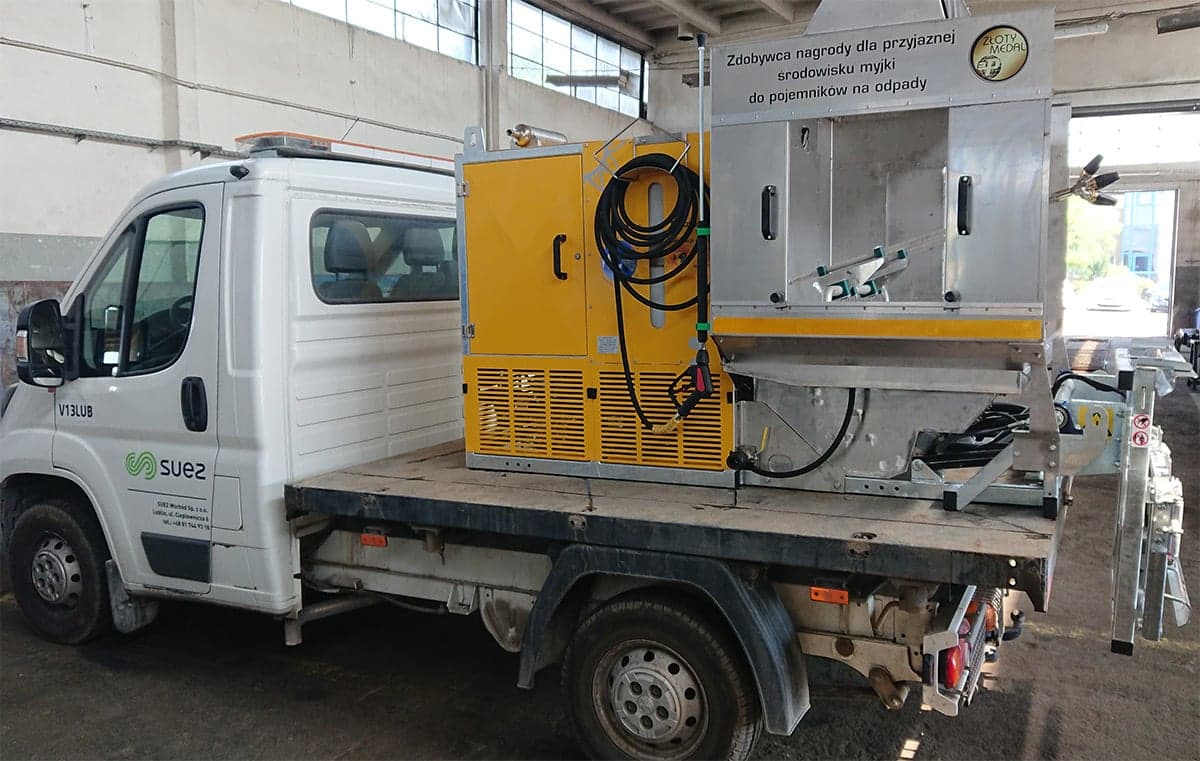

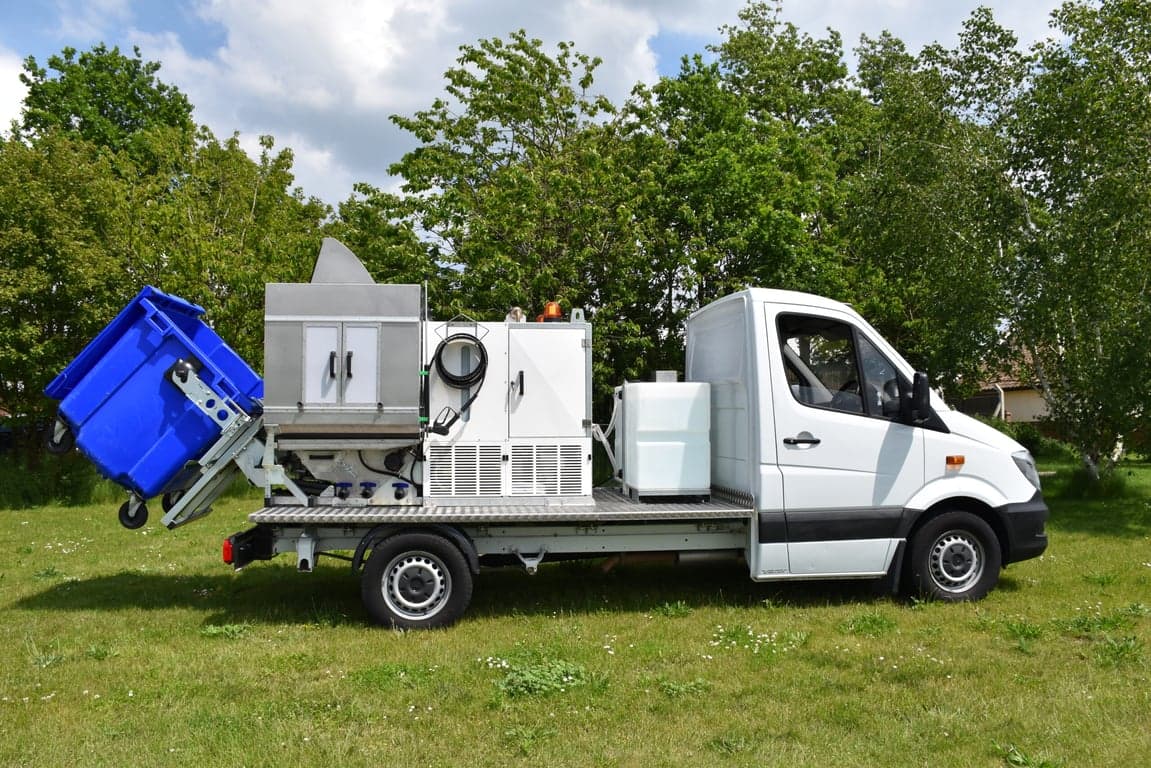

The vehicle-based bin cleaning machine can clean all manner of waste bins from 110 litre up to and including 1100 litre bins. The bins are cleaned internally with automatic cleaning heads and/or a manual hand lance fitted on the side of the machine.

Designed and Manufactured in house to EC machinery directives. The machine is supplied with a declaration to confirm it is manufactured in accordance with: Machinery Directive 2006/42/EC { EN12100:2010 } Low Voltage Directive 2006/95/EC { EN60204-1 } Environmental Noise Directive 2000/14/EC { EN3744:1995.

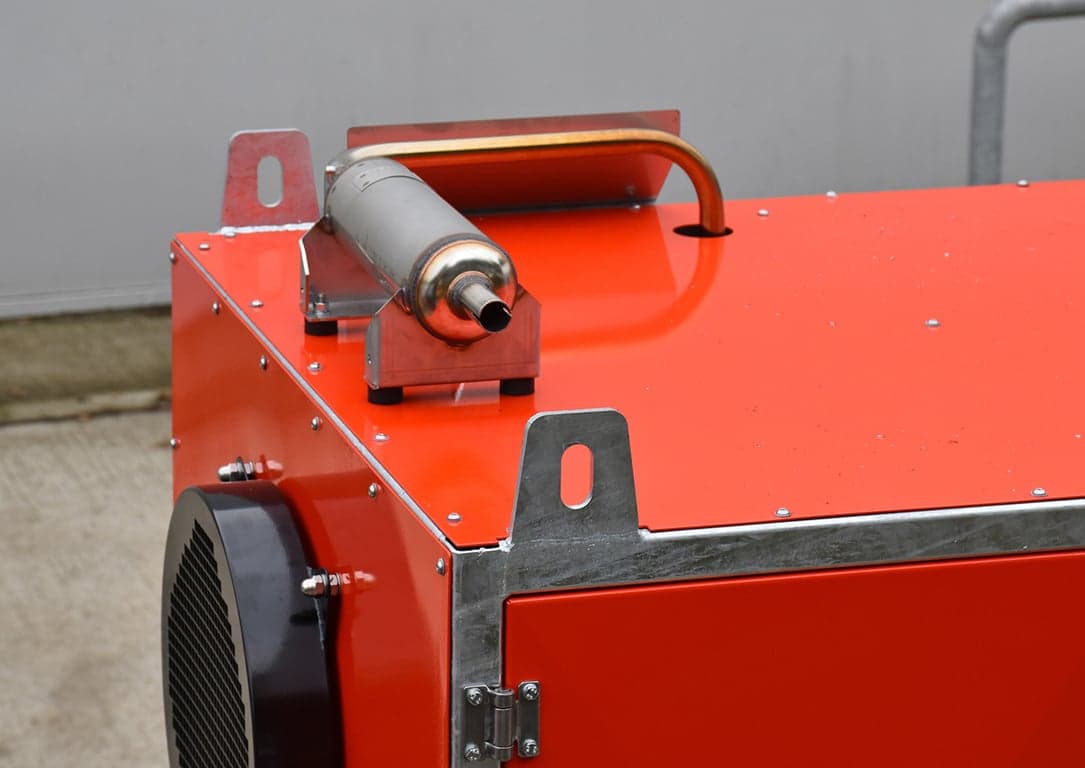

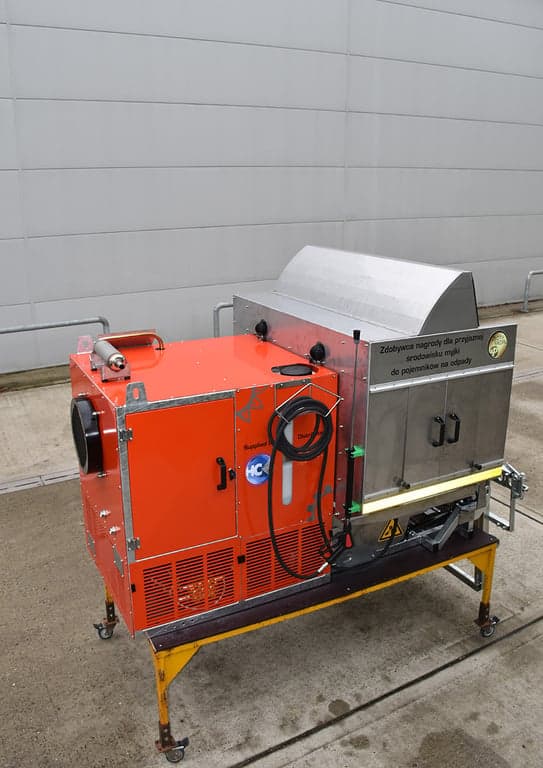

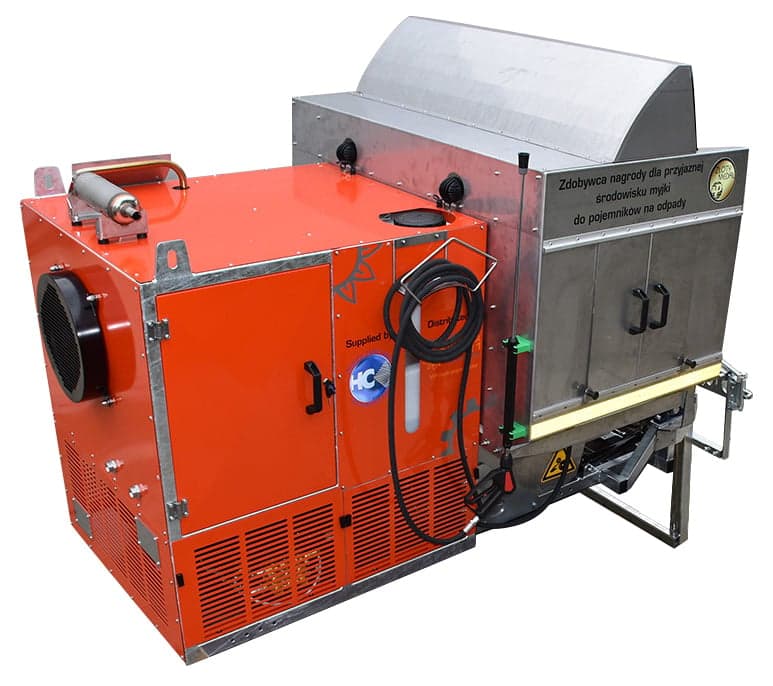

The machine incorporates an on-board plant operating system with its own generator and power supply allowing the machine to be totally self-sufficient. The water power to wash the bins comes from a Vangaud (Brigg and Stratton) 18hp petrol engine and Udor 31ltr a minute pumping system.

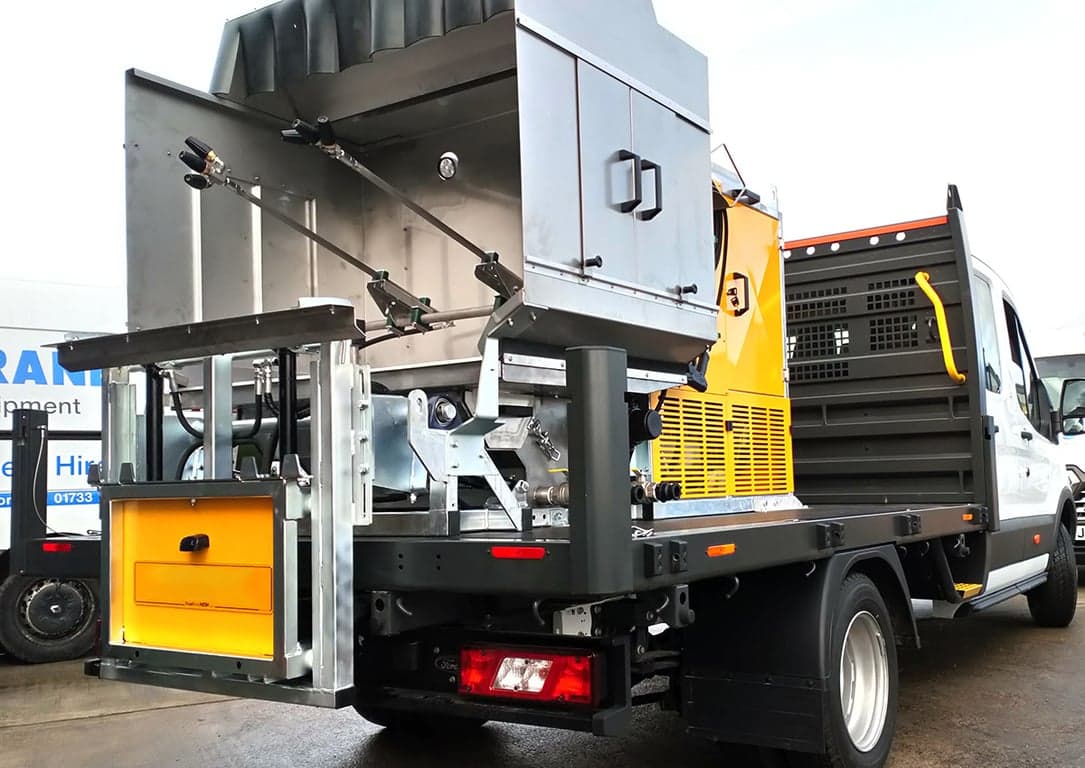

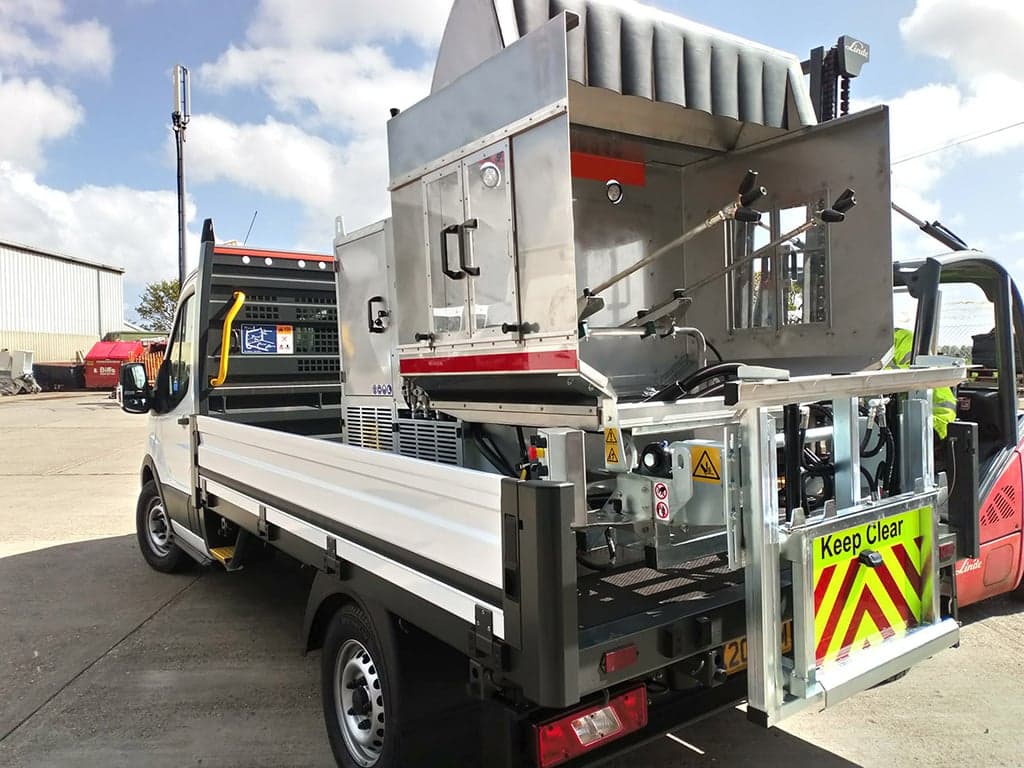

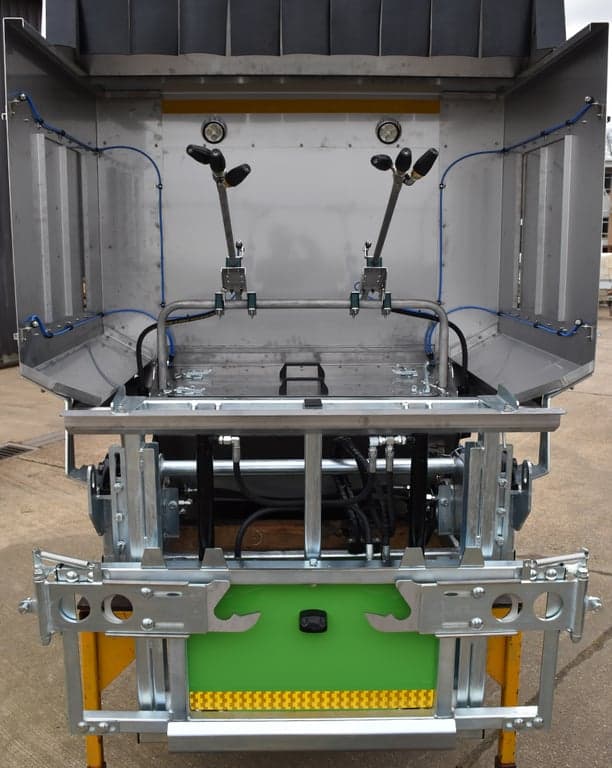

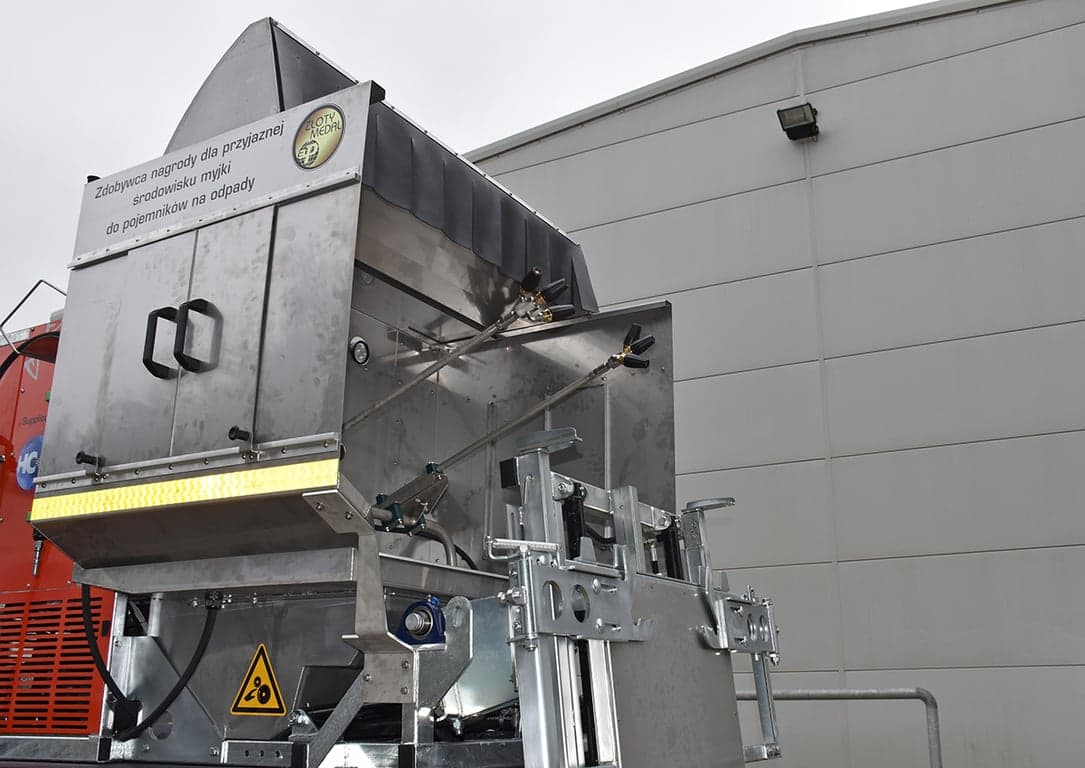

The bins are clamped, lifted and rotated into position via a hydraulic bin lift via the push of a button. The operator interface located on the side of the machine allow for the operator to control the various aspects of the machine safely and hassle free. As the machine draws its starting power from the gel battery, the battery is charged via the on-board generator. The wash bay is enclosed with stainless steel splash guards and rubber curtains which limit the amount of water leaving the wash area while in operation.

The machine can be powder coated in the customer’s choice of colour and is supplied with an operator manual. Additional options and extras are available – for example, larger water pump, additional cleaning lances, flashing beacons etc. Please contact us for more details.

  • Onboard water recycling system

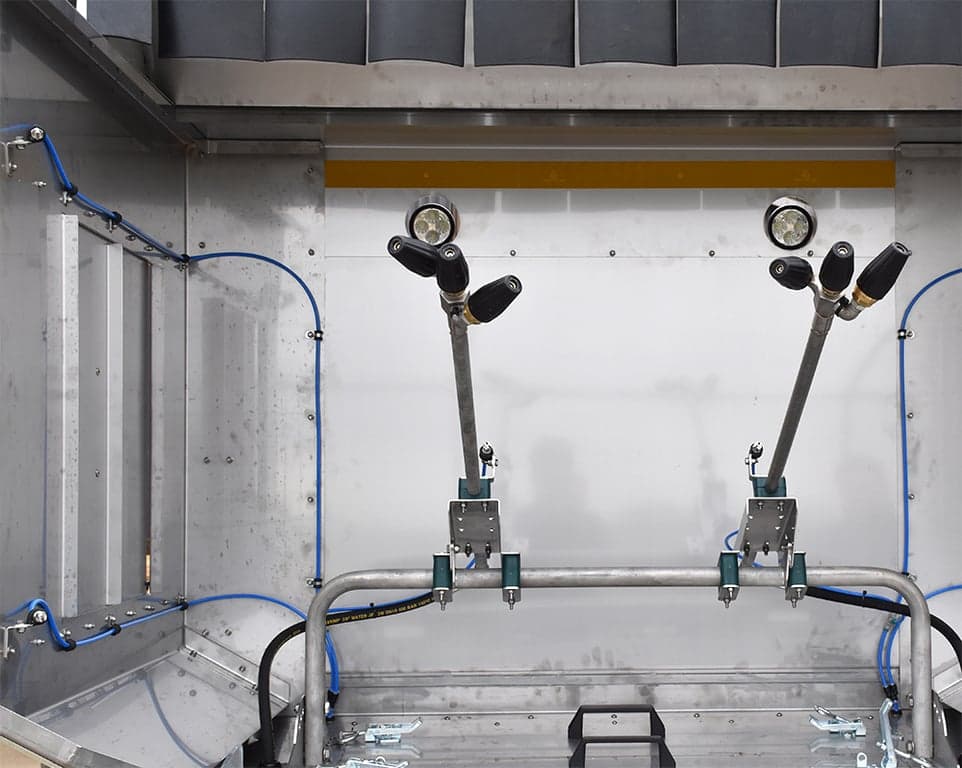

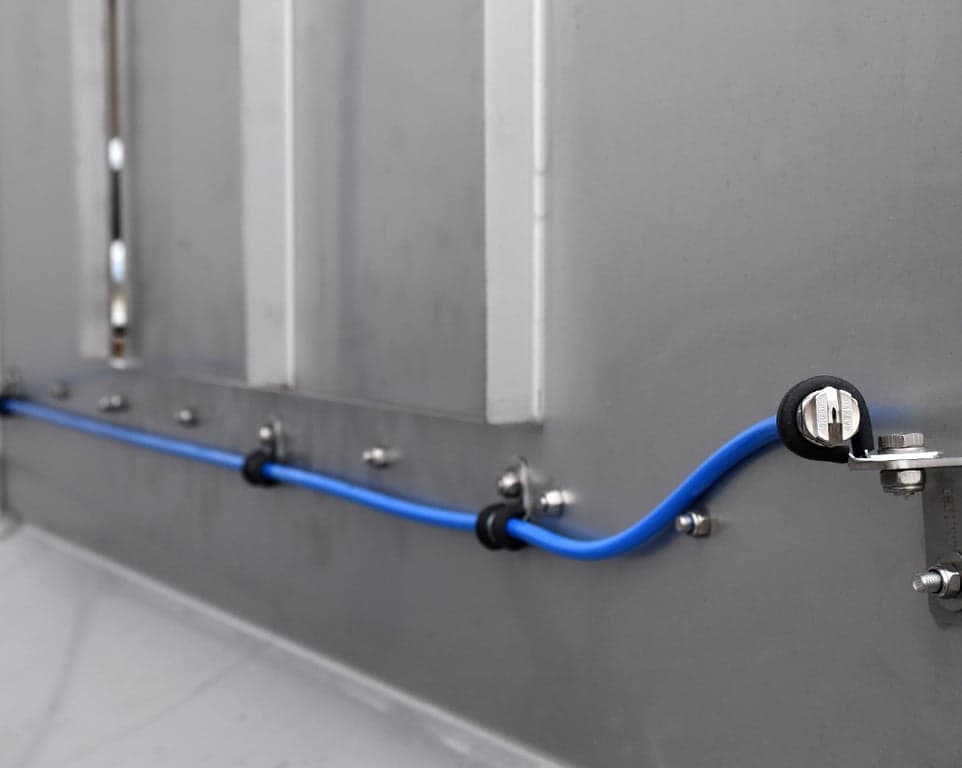

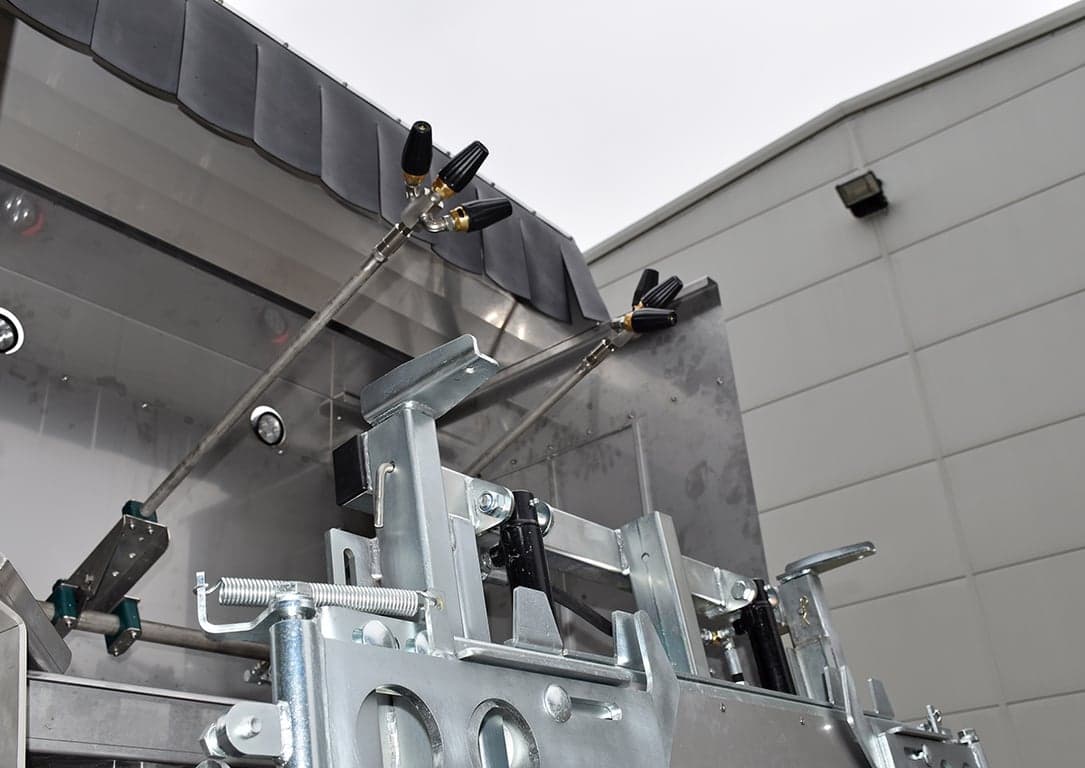

  • 2 x Automatic bin cleaning nozzles

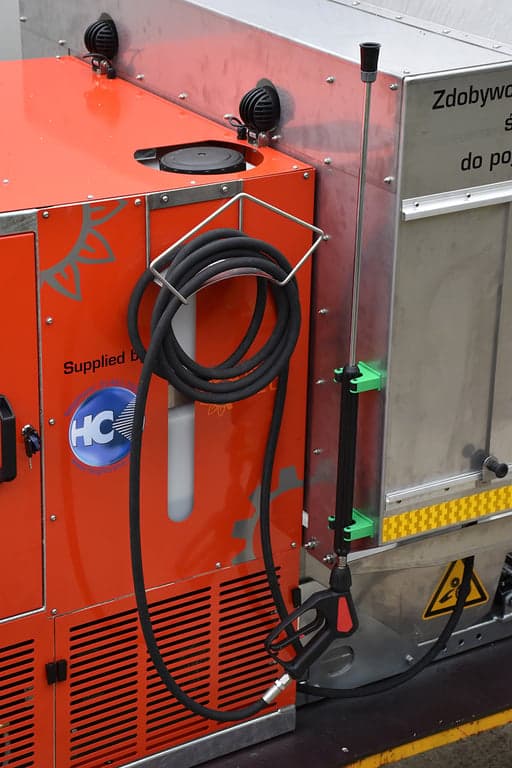

  • 1x hand lance and tooling
  • Rear facing LED lights
  • Stainless steel wash enclosure
  • Fully galvanised chassis
  • Switch trip-controlled operating system

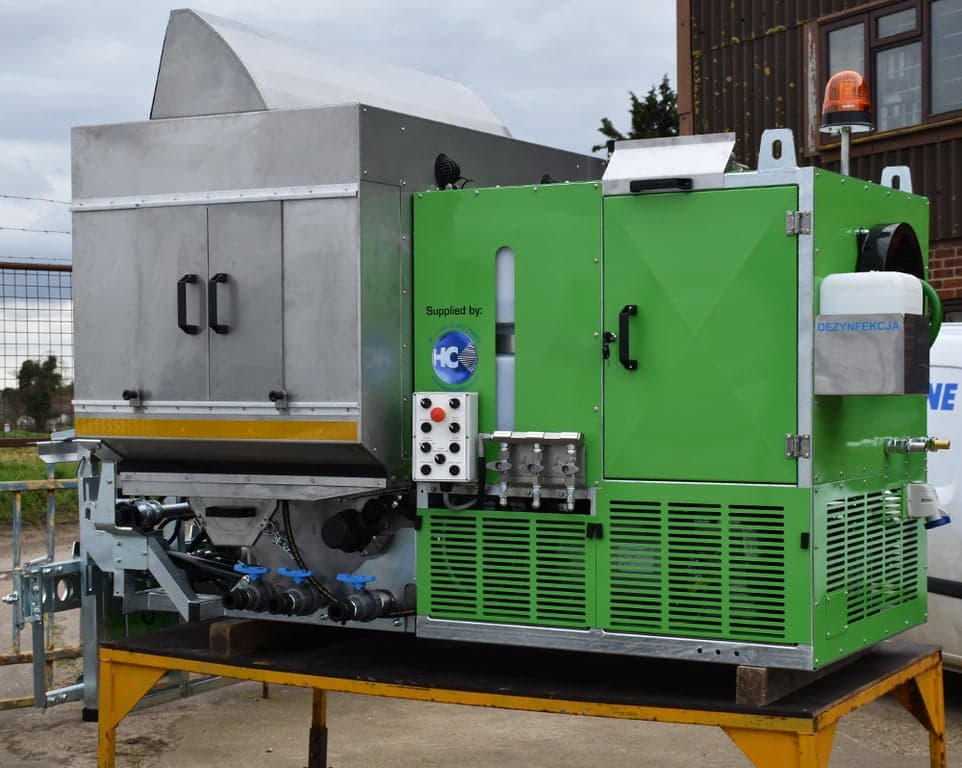

  • Push button operational controls

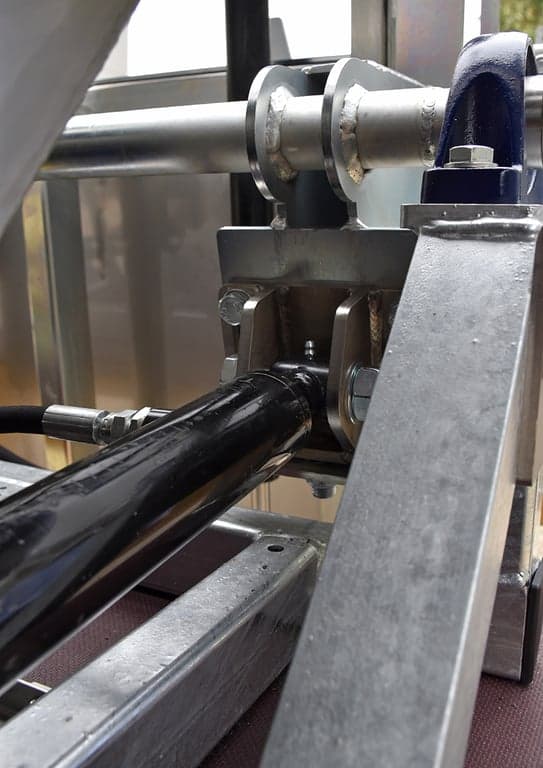

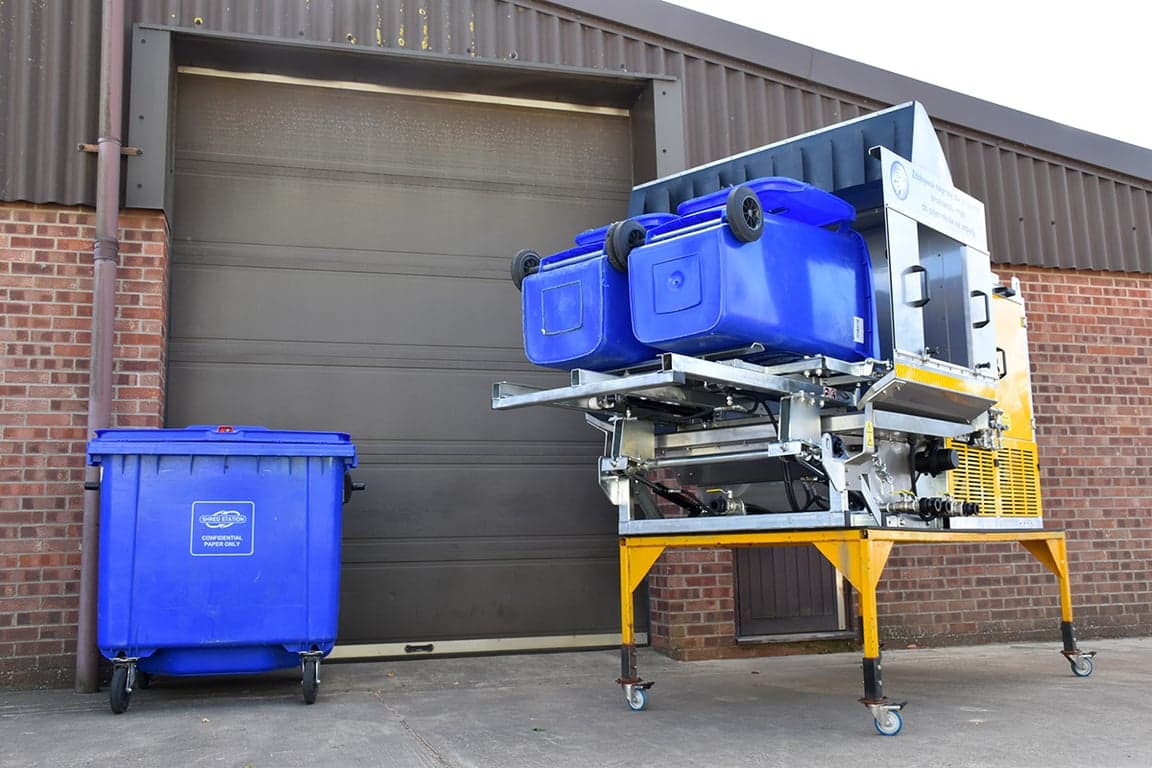

  • Hydraulic bin lift

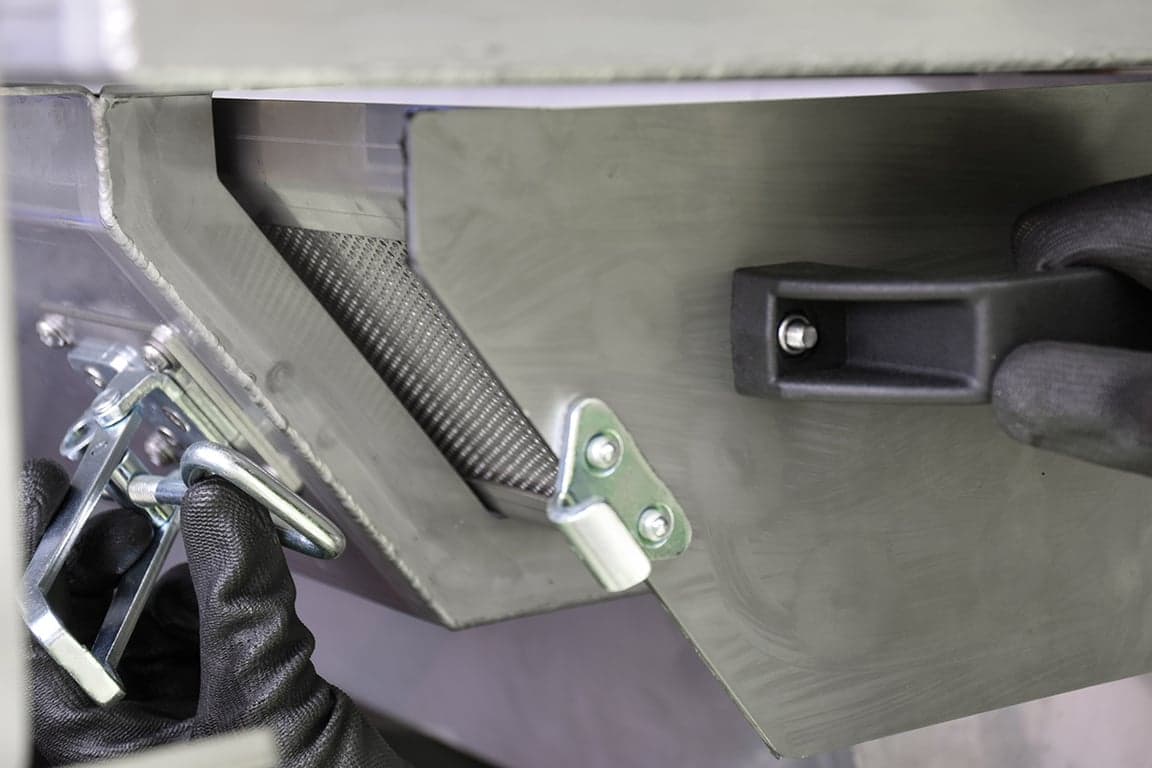

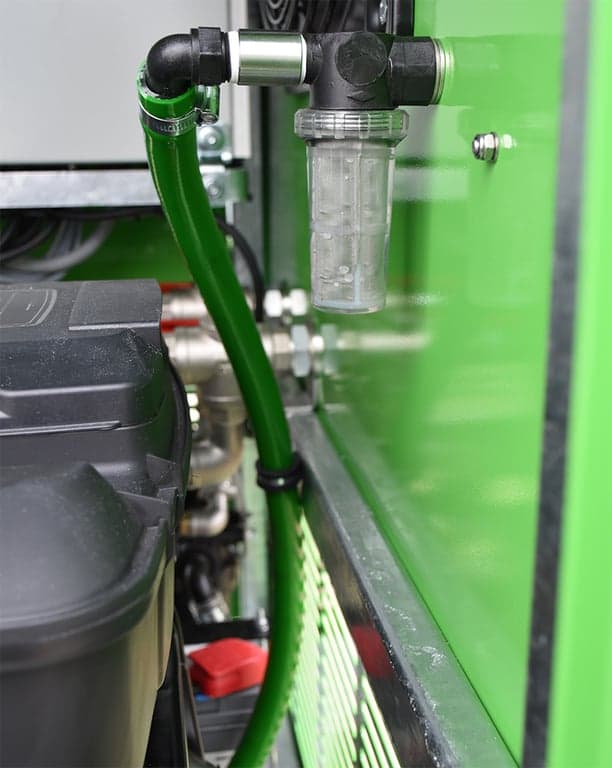

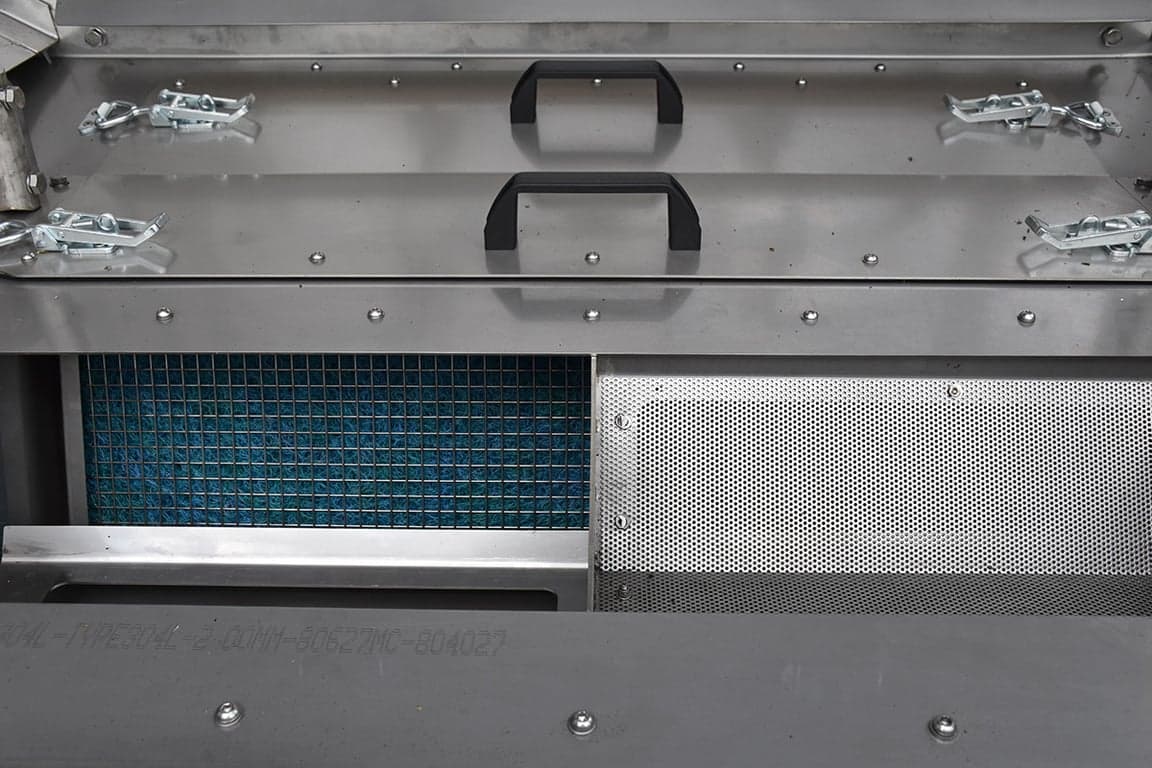

  • Removable filter trays and bowls

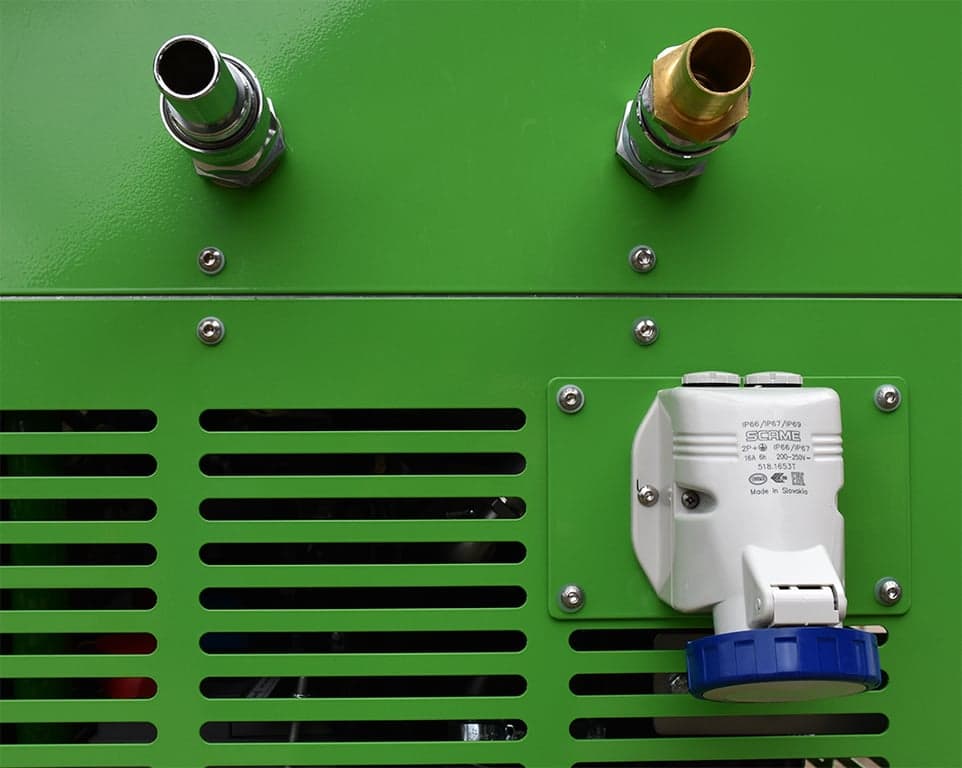

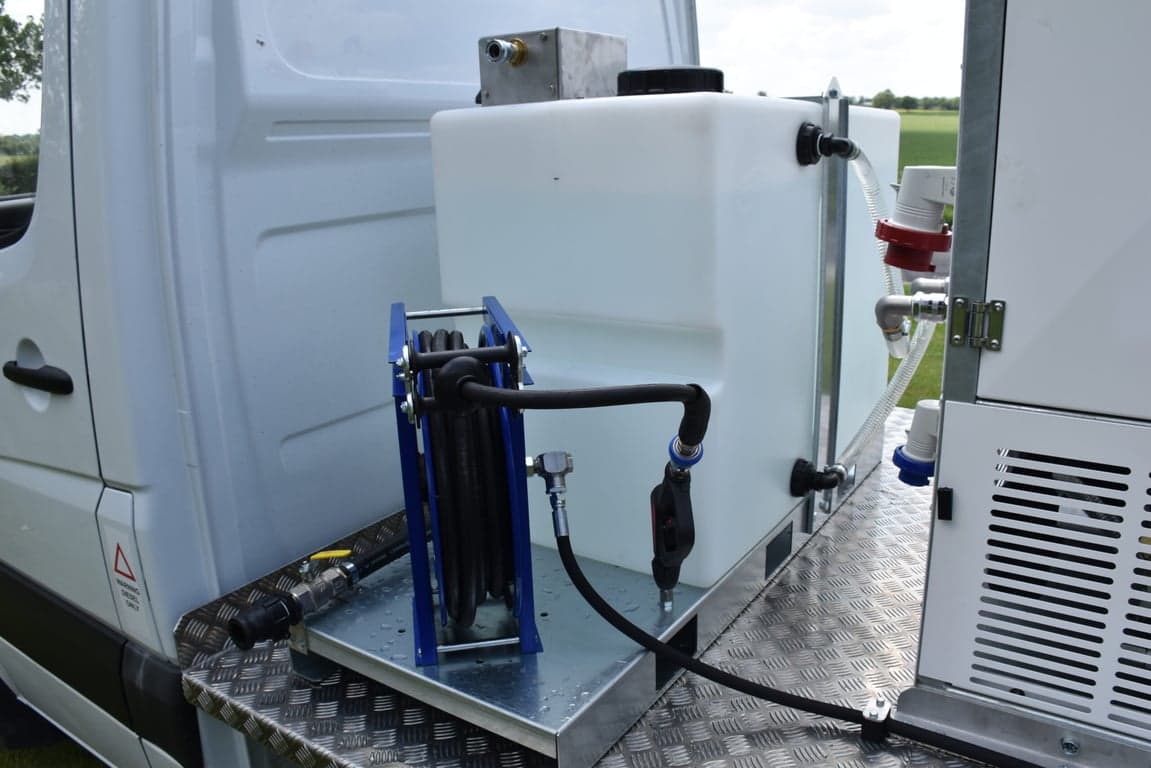

  • Quick release couplings for the application additional water tanks
  • Decibel tested
  • Lifting eyes for installation
  • Powder coated in the customer’s choice of colours
  • Assistance with the fitment of the machine to the vehicle at our depot in Norfolk UK.

Generator Voltage (V): 12 DC
Generator Output (kVA; V; ˜; Hz): 15; 400; 3; 50
Pump Pressure (bar/psi): 90/1300
Pump Flow (l/min): 31
Dimensions (mm) 2700(L) x 1650(W) x 1760(H)
Weight Unladen (kg): 850
Weight Laden (kg): 1200

  • Larger Water Pump
  • Additional Cleaning Lances

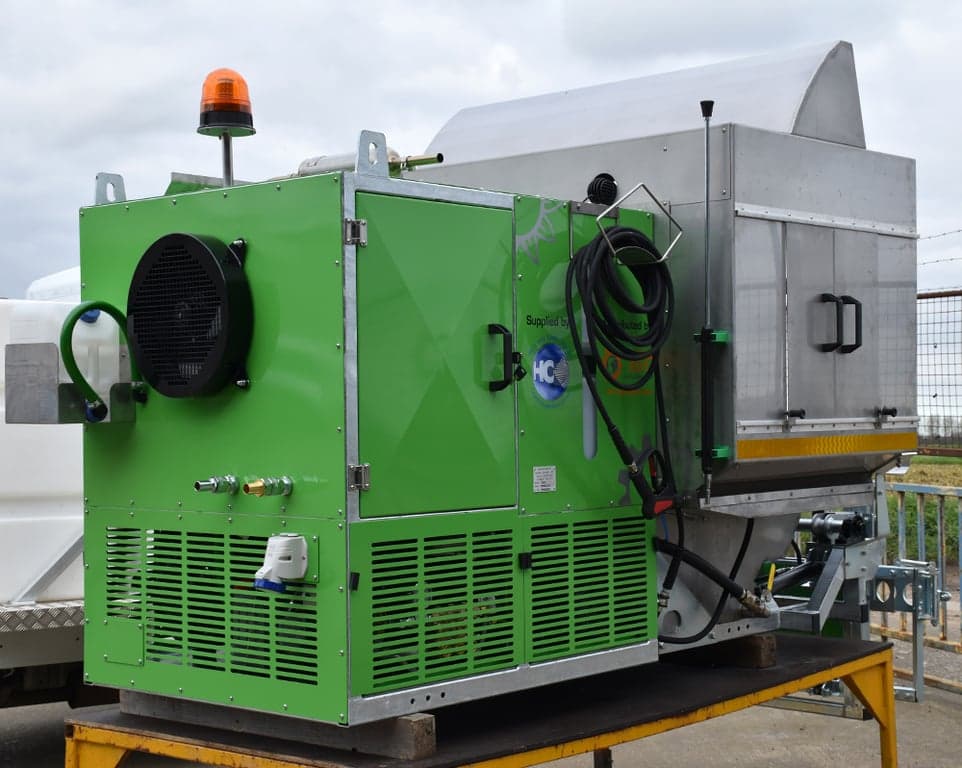

  • Flashing Beacons
  • Wet vacuum
  • Hot water boiler
  • Disinfection/deodorisation pipe work and nozzles
